Gerry Nelson

5月 012019


In a previous post, I looked at promotion from SAS 9.4 to Viya. In this post, I will look at promotion within SAS Viya. I will look at what can be promoted, the tools that support promotion, and some details about how the process works and what happens to your content. If you are used to promotion using the import export wizards in SAS 9.4, I will point out some of the current differences in promotion within Viya.

Firstly, you must be an Administrator in Viya to be able to export and import content. This is currently (as of Viya 3.4) something that cannot be changed. The two main tools you can use for promoting content between Viya Environments are SAS Environment Manager import/export wizards and the sas-admin command-line interface.

For a lot of Viya content, promotion is supported using the transfer plug-in of the sas-admin command-line interface. The transfer plug-in and SAS Environment Manager both use the transfer service under the covers. This post will focus on the content supported by the transfer service. The list of Viya content supported by the transfer service has increased with each Viya release. The table below shows the supported resources for export by Viya release.


When performing an export/import, the transfer service coordinates the export process and the creation of the package. However, it calls other related services which deal with their specific content. For example, services related to Visual Analytics will deal with reports, and Model Manager with models, etc.

Exporting

The result of the export process is a Viya promotion package, which is a json file containing a collection of transfer objects describing the content that has been exported. The transfer service's package will include the objects you select for export and the following related platform objects:

  • Folders
  • Files
  • Rules
  • Comments

There is no mechanism in Viya, like there was in 9.4, to automatically include all dependent objects in a package. To see what is included in a package, let's look at an example. In this example, we will use a Visual Analytics report, but this could apply to any supported content type.


The report “Sales Correlation” is in the folder /gelcontent/GELCorp/Sales/Reports.

In scenario 1, if we select the report and export it, the package will contain the report and the folders that are included in its path /gelcontent/GELCorp/Sales/Reports. What about authorization settings? Currently, the two interfaces behave slightly differently. The transfer plug-in will always include authorization settings in the package. However, exporting from SAS Environment manager does not include authorization settings. In terms of what authorization is included, directly set authorization are included for objects that are explicitly included in the package. In the export example above, that means we would only get any authorization rules applied directly to the report. To include authorization rules for a folder, we would need to select the folder or one of its parent folders for export.

In scenario 2, if we select the GELCORP folder and do an export, we will get all sub-folders and content below that folder, including any authorization rules applied directly to those objects. In Viya 3.4, you cannot export the complete folder tree. There is no way in the cli or environment manager to select the root of the folder tree. To export the complete folder tree, you need to export each root folder separately. A tool (exportfoldertree.py) has been added to the pyviyatools that can help with this issue. It will loop the folders and export each root folder to a package in a directory.

Importing

Viya content is uniquely identified by its Uniform Resource Identifier (URI). When importing to Viya, objects in the package are matched to objects in the target based on the URI. When matching on URI during an import, if:

  • no match occurs, then a new object is created.
  • a match does occur, then the object is overwritten.

The match on URI is an important concept. It can have some results that you might not expect if you don’t understand it. For example, if a report is renamed, a subsequent import may rename the report back based on the name of the report in the package.

In the example below, a report, identified by the uri /reports/reports/c99s5a2-ccb-4552-b1a5-d8b0e3cb1afo, has been moved to a different folder than the same report in the package being imported.

You might expect in this scenario that a new report will be created in the original folder that the report was moved from. However, since the import matches on URI, the location in the folder structure is not relevant. The report is not added to the folder location stored in the package but is overwritten in its new location. The import process will issue a clear warning that this has happened.

How is authorization dealt with during import? In general, when importing a resource that already exists in the target environment, the authorization settings will be merged with the target resource authorization. During the merge, if the rule (by URI of the rule):

  • already exists, then it may be updated.
  • does not exist, then a rule may be created.

Authorization is not synched during an import, it is a merge. A rule will never be deleted during an import.

Finally, there is some functionality during import that you may be used to in SAS 9.4 that is not available in Viya yet. When importing a package to Viya you cannot:

  • Subset the content from the package during import.
  • Specify a new location in the target folder tree for imported objects.

I hope this helps you gain a better understanding of the features of promotion within SAS Viya and how they work. Here are some related resources that may also help:

Content promotion in Viya: overview and details was published on SAS Users.

4月 052019


When working with files like SAS programs, images, documents, logs, etc., we are used to accessing them in operating system directories. In Viya, many of these files are not stored on the file-system. In this blog, we will look at where and how files are stored in Viya, and how to manage them.

In Viya, external files are stored in the Infrastructure Data server and accessed using the file micro-service. The file service manages a wide variety of file types including, images, html files, text files, csv files, SAS programs, media files, pdfs, office documents and logs. The file service is not a complete file system, but rather a method of accessing individual files stored in the infrastructure data server identified via their URI (a unique identifier).

Some files may also be accessible in Viya folders. The file service stores resources like images, SAS programs, etc. in the Infrastructure Data server, but they are accessible from Viya folders in the Content Area of Environment Manager or in SAS Drive.

The screenshot below shows the properties of an image file that was uploaded to a Viya folder using SAS Drive. You can see the filename, the URI (including the ID) and the location in the folder structure.

For files that are surfaced in folders, we can manage the files (view, copy, move, delete etc.) using SAS Environment Manager Content area, SAS Drive or the Folders command line interface. To learn more, watch this video from the SAS Technical Insights and Expertise Series.

However, many system generated files are managed by the file service and stored in the infrastructure data server, but are not accessible from the folders interfaces. A good example of system generated files that an administrator may need to manage are logs.

Many times when processing in Viya, logs are created and stored in the infrastructure data server. For example, when CAS table state management jobs, data plans, file imports, model or scoring processes are executed, a log is generated and stored by the file service.
How do we manage these files? While the files generated are mostly small in size, a large active Viya system with a long history will need management of the log and other files stored in the infrastructure data server.

One way we can access these files is using the REST API of the file service.

You can use your favorite tool to access the REST API. In this blog, I will use the GEL pyviyatools, initially the basic callrestapi tool. For more details on the pyviyatools, read this blog or go directly to the SAS GitHub site.

To get a list of all files are stored in the infrastructure data server send a GET request to the /files/files endpoint of the files service.

/./callrestapi.py -m get -e /files/files -o simple/

Partial output shows the image file referenced above and what could be a system generated log file.
=====Item 0 =======
contentType = image/jpeg
createdBy = geladm
creationTimeStamp = 2019-01-24T14:40:15.085Z
description = None
encoding = UTF-8
id = 6d2995b3-0fa6-4090-a338-1fbfe51fb26b
modifiedBy = geladm
modifiedTimeStamp = 2019-01-25T17:59:28.500Z
name = company_logo.JPG
properties = {}
size = 327848
version = 2

=====Item 164 =======
contentType = text/plain
createdBy = sasadm
creationTimeStamp = 2019-01-31T12:35:00.902Z
description = None
encoding = UTF-8
id = e4d4c83d-8677-433a-a8d3-b03bf00a5768
modifiedBy = sasadm
modifiedTimeStamp = 2019-01-31T12:35:09.342Z
name = 2019-01-31T12:35.823Z-results.log
parentUri = /jobExecution/jobs/380d3a0c-1c31-4ada-bf8d-4db66e786669
properties = {}
size = 2377
version = 2

To see the content of a file, use a GET request, the id of the file and the content endpoint. The content of the log file is displayed in the call below.

/./callrestapi.py -m get -e /files/files/01eb020f-468a-49df-a05a-34c6f834bfb6/content/

This will display the file contents. The output shows the log from a CAS table state management job.

———-JOB INFORMATION———-

Job Created: 2019-01-31T12:35.823Z
Job ID: 380d3a0c-1c31-4ada-bf8d-4db66e786669
Heartbeat interval: PT0.3S
Job expires after: PT168H
Running as: sasadm
Log file: /files/files/e4d4c83d-8677-433a-a8d3-b03bf00a5768 [ 2019-01-31T12:35.823Z-results.log ]
Arguments:

Options:
{
“enabled” : true,
“type” : “LOAD”,
“settings” : {
“refresh” : false,
“refreshMode” : “newer”,
“refreshAccessThreshold” : 0,
“varChars” : false,
“getNames” : true,
“allowTruncation” : true,
“charMultiplier” : 2,
“stripBlanks” : false,
“guessRows” : 200,
“scope” : “global”,
“encoding” : “utf-8”,
“delimiter” : “,”,
“successJobId” : “”
},
“selectors” : [ {
“serverName” : “cas-shared-default”,
“inputCaslib” : “hrdl”,
“outputCaslib” : “hrdl”,
“filter” : “or(endsWith(tableReference.sourceTableName,’.sashdat’), endsWith(tableReference.sourceTableName,’.SASHDAT’),\nendsWith(tableReference.sourceTableName,’.sas7bdat’),\nendsWith(tableReference.sourceTableName,’.csv’)\n)”,
“settings” : { }
} ]
}

————————————————–

Created session cas-shared-default: d4d1235a-6219-4649-940c-e67526be31ed (CAS Manager:Thu Jan 31 07:35:01 2019)
Using session d4d1235a-6219-4649-940c-e67526be31ed
Server: cas-shared-default
Input caslib: hrdl
Output caslib: hrdl
Effective Settings:

———-LOAD STARTING———-

— loaded –> unloaded – HR_SUMMARY unloaded – HR_SUMMARY_NEW unloaded – HRDATA unloaded – PERFORMANCE_LOOKUP <– performance_lookup.sas7bdat
Access denied.
———-LOAD COMPLETE———-

———-CLEANUP STARTING———-

Session deleted: cas-shared-default: d4d1235a-6219-4649-940c-e67526be31ed
———-CLEANUP COMPLETE———-

Final Job State: completed
Log file:/files/files/e4d4c83d-8677-433a-a8d3-b03bf00a5768

I started my journey into the file service to discover how an administrator could manage the log files. In reviewing the files and their contents using the REST API, I discovered that there was no easy way to uniquely identify a log file. The table below shows the attributes of some of log files from the GEL Shared Viya environment.

As this post has illustrated, file service REST API can be used to list and view the files. It can also be used for other file management activities. To help administrators manage files that are not visible via a user interface, a couple of new tools have been added to the pyiyatools.

listfiles.py provides an easy interface to query what files are currently stored in the infrastructure data server. You can sort files by size or modified date, and query based on date modified, user who last modified the file, parentUri or filename. The output provides the size of each file so that you can check the space being used to store files. Use this tool to view files managed by the file service and stored in the infrastructure data server. You can use lisfiles.py -h to see the parameters.

For example, if I want to see all potential log files older than 6 days old created by the /jobexecution service, I would use:

/./listfiles.py -n log -p /jobExecution -d 6 -o csv/

The output is a list of files in csv format:

id ,name ,contentType ,documentType ,createdBy ,modifiedTimeStamp ,size ,parentUri

“f9b11468-4417-4944-8619-e9ea9cd3fab8″,”2019-01-25T13:35.904Z-results.log”,”text/plain”,”None”,”sasadm”,”2019-01-25T13:35:09.490Z”,”2459″,”/jobExecution/jobs/37536453-fe2f-41c2-ba63-ce72737e482c”

“dffdcc97-3fb0-47c1-a47d-e6c8f24f8077″,”2019-01-25T12:35.869Z-results.log”,”text/plain”,”None”,”sasadm”,”2019-01-25T12:35:08.739Z”,”2459″,”/jobExecution/jobs/99708443-2449-40b7-acc3-c313c5dbca23″

“5fa889b6-93fb-4496-98ba-e0c055ca5999″,”2019-01-25T11:35.675Z-results.log”,”text/plain”,”None”,”sasadm”,”2019-01-25T11:35:09.118Z”,”2459″,”/jobExecution/jobs/eb182f88-4853-41f4-be24-225176991e8a”

“87988659-3c2d-4602-b61a-8042b34022ac”,”2019-01-25T10:35.657Z-results.log”,”text/plain”,”None”,”sasadm”,”2019-01-25T10:35:09.881Z”,”2459″,”/jobExecution/jobs/73fffe47-a7ef-4c1d-b7bf-83ef0b86319e”

archivefiles.py allows you to read files from the file service and save them to a directory on the file system. Optionally, the tool will also delete files from the file service to free up space. For example, if I want to archive all the files I listed above, I would use:

/./archivefiles.py -n log -d 6 -p /job -fp /tmp/

This tool will create a timestamp directory under /tmp and save a copy of each file in the directory.

If you want to archive and delete, add the -x option.

IMPORTANT: Use the archive tool carefully. We recommend that you run a Viya Backup prior to running the tool to delete files.

Now you know where your files are and you have some help with managing them. For the full details of how you can manage files using the file service REST API you can view the file service REST API documentation on developer.sas.com. If you would like to suggest any changes to the existing tools, please enter a suggestion on GitHub.

Where are my Viya files? was published on SAS Users.

12月 182018


The REST architecture that SAS Viya is built on is, by its nature, open. This is a very powerful thing! In addition, the supplied command-line interfaces (CLIs) add a user-friendly interface to make it easier to make REST calls. Occasionally, however, it is necessary to call REST directly. This can occur when there is (currently) no CLI interface to a piece of functionality, or you wish to run a more complex task from a single command. In the SAS Global Enablement and Learning (GEL) group, as we staged our software images and developed our materials for our SAS Viya training, we found ourselves with some of these needs. As a result, we developed the GEL pyviyatools.

The GEL pyviyatools are a set of Python-based command-line tools that call the SAS Viya REST APIs. The tools can be used to make direct calls to any REST-endpoint (like a cURL command), and as a framework to build additional tools that make multiple rest calls to provide more complex functionality. The tools are designed to be used in conjunction with the sas-admin command line interfaces (CLI).

One of the challenges of making REST calls to SAS Viya is getting your authentication token. The tools simplify this issue by using the authentication mechanism provided by the SAS Viya command-line interfaces.

callrestapi (call_rest_api) is a general tool, and the building block for all the other tools. It calls a function callrestapi() that can also be used from any python program to build more complex tools.

The tools are self-documenting just like the Viya CLIs (just use the -h or –help option)

With callrestapi, you must pass a method and endpoint. You can optionally pass JSON data for a post request, content type headers, and the -o option to change the style of output.

In addition to this basic cURL-like functionality, there are some tools built on top of callrestapi that perform more complex functions. Here are few examples -- check out the GitHub project for a full list.

    createdomain.py creates a SAS Viya authentication domain

    updatedomain.py loads a set of userids and passwords to a Viya domain from a csv file

    listrules.py lists authorization rules subset on a principal and/or a uri

    loginviauthinfo.py uses an authinfo file to authenticate to the CLI

    updateprefences.py updates preferences for a user or group of users

    updatedomain.py loads a set of userids and passwords to a SASViya domain from a csv file

    createfolders.py creates a set of SAS Viya folders from a csv file

    explainaccess.py explains access for a folder, object or service endpoint

You can get the tools from GitHub where the installation and usage instructions are documented

Please try these tools if you need more command-line functions in your SAS Viya environment. In addition, if you want to contribute additional tools built on the framework, please see the CONTRIBUTING.md file in the GitHub repository. You can also report any issues or suggestions via GitHub issues.

Introducing Python-based command-line tools for SAS Viya was published on SAS Users.

8月 152018


SAS Viya logoSAS Viya 3.4 has some new functionality that provides real help for those who want to transition from SAS Visual Analytics on 9.4 to SAS Viya. In prior releases of SAS Viya you could promote reports and explorations (and a few other supporting objects). In SAS Viya 3.4, promotion support is added for many additional SAS 9.4 resources, making it easier to make the leap to SAS Viya. In this blog, I will review this new functionality.

In SAS Viya 3.4, the following objects participate in promotion from SAS 9.4.

  • Configuration
    • Identities
    • Authorization
    • Data definitions
  • Content
    • Folders
    • Reports
    • Explorations
    • Stored processes
    • Supporting resources (such as themes, images, graphs templates)

The details of support for each resource are unique and are discussed below.

Identities

User and group promotion from SAS 9.4 to SAS Viya is used to support the transition to the target environment of authorization settings that are associated with content.  Metadata is exported to support the mapping of SAS 9.4 identity metadata (Users and Groups) to SAS Viya identities (Users, Groups and Custom groups).

During promotion of identity metadata:

  • Users connections are mapped using metadata DefaultAuth:logonid to SAS Viya identity id
  • Metadata-only groups from SAS 9.4 are converted to SAS Viya Custom groups (except SAS General Servers and SAS System Services)
  • If custom groups of the same name (or sometimes the same purpose but a different name) exist in the target, the group is preserved and any mapped members from the source system are added to the group.

Authorization

Identities are “promoted” to support re-implementation of authorization. You do not have to explicitly export authorization as it is included with libraries, tables, folders and reports when they are exported. Promotion of authorization is optional. If you don’t wish to include authorization, but rather re-implement it in
SAS Viya, you can switch this functionality off at import time.

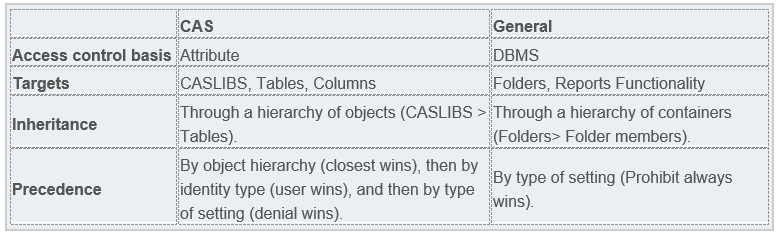

SAS Viya has two authorization systems, the general authorization system for folders and content, and the CAS authorization system for data. These authorization systems are different than the metadata authorization model in SAS 9.4. So what happens when you promote content that includes authorization?

General Authorization (folders and content)

Promotion will attempt to convert SAS 9.4 authorization to rules in the General authorization system.  During the process:

  • Explicit Access Control Entries are converted to SAS Viya Rules
  • Access Control Entries with denials are discarded
  • Access Control Templates are not promoted

In addition, if an object (folder/report):

  • does not exist in the target environment,relevant authorization is set for the object and the access control entries from the source are implemented as rules on the object.
  • existsin the target environment, then access control entries from the source are merged with any pre-existing authorizations in the target environment.

CAS Authorization

The CAS authorization system covers CASlibs and data.  Promotion will attempt to convert SAS 9.4 authorization on libraries and tables to access controls in the CAS authorization system. During the process:

  • Access Control Entries are not promoted unless they are applied directly to a library or table.
  • Access Control Entries are converted to CAS access controls.
  • Row-level permissions are preserved.
  • If an object exists in the target environment no authorization settings are imported.
  • Access Control Templates are not promoted.

For details of how individual permissions for both data and content are mapped from SAS 9.4 to SAS Viya see the documentation has great coverage of the steps to follow.

The Process

To finish off, I'll share few observations on the process of exporting from 9.4 and importing in SAS Viya. Like SAS 9.4 promotion, you need to import in a specific order. This allows the software to make the relevant connections to dependent resources. For example, if the CASLIB already exists in the target, then import tables can be mapped to it. Typically, the order is: identities > library definitions > tables > reports and folders. To support this process, make sure, during export, you have a separate package for each resource type. Some considerations for the export process.

You should export:

  • Identities (users and groups) from the security folders in SAS 9.4 metadata to a separate package.
  • Only groups that you need in the target environment (you can subset any irrelevant SAS 9 groups at export time).
  • LASR and Base Libraries and tables directly from the library definition in the folder tree (this prevents extraneous folders being created in the target environment).
  • Libraries in a separate package from tables so that they may be imported first and be available for mapping when the tables are imported.
  • Content and reports from the base of the folder tree so that all directly applied access control entries will be included in the package.

Prior to importing, make sure that users and groups are configured correctly in LDAP. As I already mentioned, physical data is not promoted so ensure that required data and formats are accessible to the SAS Viya environment.

The new functionality for promotion is a great start in helping with the transition from SAS 9.4 to SAS Viya. Look for more functionality in future releases.

New functionality for transitioning from SAS Visual Analytics on 9.4 to SAS Viya was published on SAS Users.

6月 082018


SAS Viya provides import and export functionality for user-created content like reports and data plans. Often, in addition to content, an administrator will want to save configuration so that it can be reloaded or updated and applied to a different system. SAS Viya provides the capability to save and reload configuration using the SAS Viya command-line interfaces that are previous blog post.

The

It is possible to save a set of configuration settings and reload them to the same or a different system. This can be useful when you have your configuration established and you wish to keep a backup, or make a selective backup of configuration prior to making a change.

The connection to LDAP is a key early step in a SAS Viya implementation. With the configuration CLI, once you have the SAS Viya LDAP configuration established, you can export it to a file, and then use that file (with any necessary modifications) to stage additional systems, or as a backup prior to making changes to your existing systems configuration.

How to save and reload configuration

As always, when using the command-line interfaces you must

./sas-admin configuration configurations list --definition-name sas.identities.providers.ldap.user  --service identities



Next, using the id from the previous step you can list the configuration properties.

./sas-admin configuration configurations show -id b313a5a7-1c73-4f4a-9d3d-bba05b626939



Save LDAP Configuration

The save process creates json files. The following steps use the download command to save to json files the connection, user and group configuration instances for the SAS Viya connection to LDAP.

./sas-admin configuration configurations download --target /tmp/ldapconnection.json  --definition-name sas.identities.providers.ldap.connection  --service identities


./sas-admin configuration configurations download --target /tmp/user.json  --definition-name sas.identities.providers.ldap.user  --service identities


./sas-admin configuration configurations download --target /tmp/group.json  --definition-name sas.identities.providers.ldap.group  --service identities



You should open the json files and check that the correct configuration has been saved. It is possible for the process to complete without errors and return json that is not what you are expecting. This would cause problems with your reload, so checking the saved json is important.

You can keep the JSON file as is, or make changes to key attributes. You may want to do this if you are importing to a different system.

Load the SAS Viya LDAP Configuration

To load you simply use the update command and pass the json file.

./sas-admin configuration configurations update --file /tmp/ldapconnection.json

./sas-admin configuration configurations update --file /tmp/user.json

./sas-admin configuration configurations update --file /tmp/group.json



The impact of isDefault

There is a value, isDefault, stored within the configuration which has an impact on the persistence of changes made to configuration.

isDefault impacts how services treat existing configuration when a service starts. When a service starts a setting of:

  • isDefault=true in the existing configuration means the service will overwrite the configuration object with new defaults.
  • isDefault=false in the existing configuration means the service will NOT overwrite the existing configuration object.

In other words, if the configuration is flagged as “default” then the service is permitted to update or add to the default values.

Objects created by the services at startup always have isDefault set to true. Objects created in Environment Manager always have isDefault set to false. This means changes in Environment Manager are always respected by services on restart, they will not be overwritten.  But services are allowed to overwrite their own defaults at startup.

When using the CLI, the administrator needs to decide what is the appropriate value for isDefault. If you require the configuration change to persist across service restarts then set isDefault=false.

Saving and Reloading Micro-Service Logging Levels

Let’s look at another use case for save and reload of configuration. Updating micro-service logging configuration levels in batch can be very useful. You may want to save your current logging configuration and modify it to raise logging levels. You may create multiple json files with different logging configurations for different scenarios. When debugging an issue in the environment you could load a verbose logging configuration. If you wish to keep the new configuration you would edit the json and set IsDefault=false.

The step below saves all configuration instances created from the logging.level configuration definition. These configuration instances control the logging level for the SAS Viya microservices and servers.

./sas-admin configuration configurations download --definition-name logging.level -target /tmp/default_logging.level.txt



If you wish to persist your new logging configuration, edit the file to set metadata.isDefault=false, save the new file and then and update the logging configuration using the update command:

./sas-admin configuration configurations update --file /tmp/new_logging.level.txt



When you are done, you can use the original file to reset the logging level back to default values.

In most cases a server restart is not required after a configuration update, find details in the administration guide.

Saving and reloading SAS Viya configuration was published on SAS Users.

3月 092018


SAS Viya 3.3 introduces a set of command-line interfaces that SAS Viya administrators will find extremely useful. The command-line interfaces(CLI) will allow administrators to perform numerous administrative tasks in batch as an alternative to using the SAS Environment Manager interface. In addition, calls to the CLI’s can be chained together in scripts to automate more complex administration tasks. In the post I will introduce the administration CLI’s and look at a few useful examples.

The sas-admin CLI is the main interface; it acts as a wrapper for the other CLI’s. The individual CLI’s operate as interfaces to functionality from with sas-admin. The CLI’s provide a simplified interface to the SAS Viya REST services. They abstract the functionality of the REST services allowing an administrator to enter commands on a command line and receive a response back from the system. If the CLI’s do not surface, all functionality you need, calls to the REST API can be made to fill in the gaps.

In SAS Viya 3.3 the available interfaces(plug-ins) within sas-admin are:

Plugin Purpose
audit Gets SAS audit information.
authorization Gets general authorization information, creates and manages rules and permissions on folders.
backup Manages backups.
restore Manages restore operations
cas Manages CAS administration and authorization
configuration Manages the operations of the configuration service
compute Manages the operations of the compute service.
folders Gets and manages SAS folders.
fonts Manages VA fonts
devices Manages mobile device blacklist and whitelist actions and information.
identities Gets identity information, and manages custom groups and group membership
licenses Manages SAS product license status and information
job Manages the operations of the job flow scheduling service
reports Manages SAS Visual Analytics 8.2 reports
tenant Manages tenants in a multi-tenant deployment.
transfer Promotes SAS content.



The command-line interfaces are located on a SAS Viya machine (any machine in the commandline host group in your ansible inventory file) in the directory /opt/sas/viya/home/bin.

There are two preliminary steps required to use the command-line interface: you need to create a profile and authenticate.

To create a default profile (you can also create named profiles):

sas-admin profile set-endpoint “http://myserver.demo.myco.com”
sas-admin profile set-output text

You can also simple enter the following and respond to the prompts.

sas-admin profile init

The default profile will be stored in the user’s home directory in a file <homedir>/.sas/config.json

The output options range from text, which provides a simplified text output of the result, to full json which provides the full json output that is returned by the rest call which the CLI will submit.  The full json output is useful if you’re piping the output from one command into a tool which is expecting json.

To authenticate:

sas-admin auth login –user sasadm –password ********

The authentication step creates a token in a file stored in the user’s home directory which is valid for, by default, 12 hours.  The file location is <homedir>/.sas/credentials.json.

The syntax of a call to the sas-admin CLI is shown below. The CLI requires an interfaces(plugin) and a command.

The example shows a call to the identities interface. This command will list all the users who are members of the SAS Administrators custom group.

SAS Viya 3.3 command-line interfaces

In this execution of sas-admin:

  • the interface is identities.
  • there is a global option –output set so that the result is returned in basic text.
  • the command is list-members.
  • the command option –group-id specifies the group whose members you wish to list.

The built-in help of the CLI’s is a very useful feature.

./sas-admin --help

This command provides help on the commands and interfaces(plugins) available, and the global options that may be used.

You can also display help on a specific interface by adding the interface name and then specifying –help.

./sas-admin authorization -–help

Let’s look at an example of using the command-line interface to perform some common administrative tasks. In this example I will:

  • create a new folder that is a sub-folder of an existing folder.
  • create a rule to set authorization on a folder.
  • create and secure a caslib.

Many of the folders commands require the ID of a folder as an argument. The id of the folder is displayed when you create the folder, when you list folders using the CLI and in SAS Environment Manager.

To return a folder id based on its path you can use a rest call to the /folders/folders endpoint. The json that is returned can be parsed to retrieve the id. The folders id can then be used in subsequent calls to the CLI. The rest api call below requests the id of the /gelcontent folder.

curl -X GET “http://myserver.demo.myco.com/folders/folders/@item?path=/gelcontent” -H “Authorization: bearer $TOKEN” | python -mjson.tool

It returns the following json (partial)

{
“creationTimeStamp”: “2017-11-17T15:20:28.563Z”,
“modifiedTimeStamp”: “2017-11-20T23:03:19.939Z”,
“createdBy”: “sasadm”,
“modifiedBy”: “sasadm”,
“id”: “e928249c-7a5e-4556-8e2b-7be8b1950b88”,
“name”: “gelcontent”,
“type”: “folder”,
“memberCount”: 2,
“iconUri”: “/folders/static/icon”,
“links”: [
    {
        “method”: “GET”,
        “rel”: “self”,

NOTE: the authentication token($TOKEN) in the rest call is read from the credentials.json file created when the user authenticated via sas-admin auth login. To see how this is done check out the script at the end of the blog.

The next step is to create a folder that is a sub-folder of the /gelcontent folder. The id of the parent folder, and name of the new folder is passed to the create command of the folders interface.

./sas-admin –-output json folders create –-description “Orion Star” –-name “Orion” -–parent-id e928249c-7a5e-4556-8e2b-7be8b1950b88

Next using the folder id from the previous step set authorization on the folder. In this call to the authorization interface I will grant full control to the group gelcorpadmins on the new folder and its content.

./sas-admin authorization create-rule grant -–permissions read,create,update,delete,add,remove,secure -–group gelcorpadmins -–object-uri /folders/folders/49b7ba6a-0b2d-4e32-b9b9-2536d84cfdbe/** -–container-uri /folders/folders/49b7ba6a-0b2d-4e32-b9b9-2536d84cfdbe

Now in Environment Manager, check that the folder has been created and check the authorization settings. The authorization setting on the folder shows that a new rule has been created and applied providing explicit full access to gelcorpadmins (whose user-friendly name is “GELCorp Admins”).

The next task we might perform is to add a caslib and set authorization on it. We can do that with the following calls to the cas interface.

./sas-admin cas caslibs create path -name ordata --path /tmp/orion --server cas-shared-default
./sas-admin cas caslibs add-control --server cas-shared-default --caslib ordata –-group gelcorpadmins –-grant ReadInfo
./sas-admin cas caslibs add-control --server cas-shared-default --caslib ordata --group gelcorpadmins –-grant Select
./sas-admin cas caslibs add-control --server cas-shared-default --caslib ordata --group gelcorpadmins --grant LimitedPromote
#!/bin/bash
clidir=/opt/sas/viya/home/bin/
endpoint=http://sasserver.demo.sas.com
export TOKEN=
export TOKEN=`grep access-token ~/.sas/credentials.json | cut -d’:’ -f2 | sed s/[{}\”,]//g `
#Get gelcontent folder id
curl -X GET “$endpoint/folders/folders/@item?path=/gelcontent” -H “Authorization: bearer $TOKEN” | python -mjson.tool > /tmp/newfolder.txt
id=$(grep ‘”id”:’ /tmp/newfolder.txt | cut -d’:’ -f2 | sed s/[{}\”,]//g)
echo “The folder ID is” $id
#Create orion Folder
$clidir/sas-admin –output text folders create –name Orion –parent-id $id > /tmp/folderid.txt
orionid=$(grep “Id ” /tmp/folderid.txt | tr -s ‘ ‘ | cut -f2 -d ” “)
echo “The orion folderid is” $orionid
# set permissions
$clidir/sas-admin authorization create-rule grant –permissions read,create,update,delete,add,remove,secure –group gelcorpadmins –object-uri /folders/folders/$orionid/** –container-uri /folders/folders/$orionid
$clidir/sas-admin authorization create-rule grant –permissions read –group gelcorp –object-uri /folders/folders/$orionid

The SAS Viya command-line interfaces are a very valuable addition to the administrator’s toolbox. There is obviously much more which can be done with the CLI’s than we can cover in this article. For more information and details of the available interfaces please check out the SAS Viya 3.3 command-line interfaces for Administration was published on SAS Users.

3月 092018


SAS Viya 3.3 introduces a set of command-line interfaces that SAS Viya administrators will find extremely useful. The command-line interfaces(CLI) will allow administrators to perform numerous administrative tasks in batch as an alternative to using the SAS Environment Manager interface. In addition, calls to the CLI’s can be chained together in scripts to automate more complex administration tasks. In the post I will introduce the administration CLI’s and look at a few useful examples.

The sas-admin CLI is the main interface; it acts as a wrapper for the other CLI’s. The individual CLI’s operate as interfaces to functionality from with sas-admin. The CLI’s provide a simplified interface to the SAS Viya REST services. They abstract the functionality of the REST services allowing an administrator to enter commands on a command line and receive a response back from the system. If the CLI’s do not surface, all functionality you need, calls to the REST API can be made to fill in the gaps.

In SAS Viya 3.3 the available interfaces(plug-ins) within sas-admin are:

Plugin Purpose
audit Gets SAS audit information.
authorization Gets general authorization information, creates and manages rules and permissions on folders.
backup Manages backups.
restore Manages restore operations
cas Manages CAS administration and authorization
configuration Manages the operations of the configuration service
compute Manages the operations of the compute service.
folders Gets and manages SAS folders.
fonts Manages VA fonts
devices Manages mobile device blacklist and whitelist actions and information.
identities Gets identity information, and manages custom groups and group membership
licenses Manages SAS product license status and information
job Manages the operations of the job flow scheduling service
reports Manages SAS Visual Analytics 8.2 reports
tenant Manages tenants in a multi-tenant deployment.
transfer Promotes SAS content.



The command-line interfaces are located on a SAS Viya machine (any machine in the commandline host group in your ansible inventory file) in the directory /opt/sas/viya/home/bin.

There are two preliminary steps required to use the command-line interface: you need to create a profile and authenticate.

To create a default profile (you can also create named profiles):

sas-admin profile set-endpoint “http://myserver.demo.myco.com”
sas-admin profile set-output text

You can also simple enter the following and respond to the prompts.

sas-admin profile init

The default profile will be stored in the user’s home directory in a file <homedir>/.sas/config.json

The output options range from text, which provides a simplified text output of the result, to full json which provides the full json output that is returned by the rest call which the CLI will submit.  The full json output is useful if you’re piping the output from one command into a tool which is expecting json.

To authenticate:

sas-admin auth login –user sasadm –password ********

The authentication step creates a token in a file stored in the user’s home directory which is valid for, by default, 12 hours.  The file location is <homedir>/.sas/credentials.json.

The syntax of a call to the sas-admin CLI is shown below. The CLI requires an interfaces(plugin) and a command.

The example shows a call to the identities interface. This command will list all the users who are members of the SAS Administrators custom group.

SAS Viya 3.3 command-line interfaces

In this execution of sas-admin:

  • the interface is identities.
  • there is a global option –output set so that the result is returned in basic text.
  • the command is list-members.
  • the command option –group-id specifies the group whose members you wish to list.

The built-in help of the CLI’s is a very useful feature.

./sas-admin --help

This command provides help on the commands and interfaces(plugins) available, and the global options that may be used.

You can also display help on a specific interface by adding the interface name and then specifying –help.

./sas-admin authorization -–help

Let’s look at an example of using the command-line interface to perform some common administrative tasks. In this example I will:

  • create a new folder that is a sub-folder of an existing folder.
  • create a rule to set authorization on a folder.
  • create and secure a caslib.

Many of the folders commands require the ID of a folder as an argument. The id of the folder is displayed when you create the folder, when you list folders using the CLI and in SAS Environment Manager.

To return a folder id based on its path you can use a rest call to the /folders/folders endpoint. The json that is returned can be parsed to retrieve the id. The folders id can then be used in subsequent calls to the CLI. The rest api call below requests the id of the /gelcontent folder.

curl -X GET “http://myserver.demo.myco.com/folders/folders/@item?path=/gelcontent” -H “Authorization: bearer $TOKEN” | python -mjson.tool

It returns the following json (partial)

{
“creationTimeStamp”: “2017-11-17T15:20:28.563Z”,
“modifiedTimeStamp”: “2017-11-20T23:03:19.939Z”,
“createdBy”: “sasadm”,
“modifiedBy”: “sasadm”,
“id”: “e928249c-7a5e-4556-8e2b-7be8b1950b88”,
“name”: “gelcontent”,
“type”: “folder”,
“memberCount”: 2,
“iconUri”: “/folders/static/icon”,
“links”: [
    {
        “method”: “GET”,
        “rel”: “self”,

NOTE: the authentication token($TOKEN) in the rest call is read from the credentials.json file created when the user authenticated via sas-admin auth login. To see how this is done check out the script at the end of the blog.

The next step is to create a folder that is a sub-folder of the /gelcontent folder. The id of the parent folder, and name of the new folder is passed to the create command of the folders interface.

./sas-admin –-output json folders create –-description “Orion Star” –-name “Orion” -–parent-id e928249c-7a5e-4556-8e2b-7be8b1950b88

Next using the folder id from the previous step set authorization on the folder. In this call to the authorization interface I will grant full control to the group gelcorpadmins on the new folder and its content.

./sas-admin authorization create-rule grant -–permissions read,create,update,delete,add,remove,secure -–group gelcorpadmins -–object-uri /folders/folders/49b7ba6a-0b2d-4e32-b9b9-2536d84cfdbe/** -–container-uri /folders/folders/49b7ba6a-0b2d-4e32-b9b9-2536d84cfdbe

Now in Environment Manager, check that the folder has been created and check the authorization settings. The authorization setting on the folder shows that a new rule has been created and applied providing explicit full access to gelcorpadmins (whose user-friendly name is “GELCorp Admins”).

The next task we might perform is to add a caslib and set authorization on it. We can do that with the following calls to the cas interface.

./sas-admin cas caslibs create path -name ordata --path /tmp/orion --server cas-shared-default
./sas-admin cas caslibs add-control --server cas-shared-default --caslib ordata –-group gelcorpadmins –-grant ReadInfo
./sas-admin cas caslibs add-control --server cas-shared-default --caslib ordata --group gelcorpadmins –-grant Select
./sas-admin cas caslibs add-control --server cas-shared-default --caslib ordata --group gelcorpadmins --grant LimitedPromote
#!/bin/bash
clidir=/opt/sas/viya/home/bin/
endpoint=http://sasserver.demo.sas.com
export TOKEN=
export TOKEN=`grep access-token ~/.sas/credentials.json | cut -d’:’ -f2 | sed s/[{}\”,]//g `
#Get gelcontent folder id
curl -X GET “$endpoint/folders/folders/@item?path=/gelcontent” -H “Authorization: bearer $TOKEN” | python -mjson.tool > /tmp/newfolder.txt
id=$(grep ‘”id”:’ /tmp/newfolder.txt | cut -d’:’ -f2 | sed s/[{}\”,]//g)
echo “The folder ID is” $id
#Create orion Folder
$clidir/sas-admin –output text folders create –name Orion –parent-id $id > /tmp/folderid.txt
orionid=$(grep “Id ” /tmp/folderid.txt | tr -s ‘ ‘ | cut -f2 -d ” “)
echo “The orion folderid is” $orionid
# set permissions
$clidir/sas-admin authorization create-rule grant –permissions read,create,update,delete,add,remove,secure –group gelcorpadmins –object-uri /folders/folders/$orionid/** –container-uri /folders/folders/$orionid
$clidir/sas-admin authorization create-rule grant –permissions read –group gelcorp –object-uri /folders/folders/$orionid

The SAS Viya command-line interfaces are a very valuable addition to the administrator’s toolbox. There is obviously much more which can be done with the CLI’s than we can cover in this article. For more information and details of the available interfaces please check out the SAS Viya 3.3 command-line interfaces for Administration was published on SAS Users.

12月 072017


authorization in SAS ViyaAuthorization determines what a user can see and do in an application. An authorization system is used to define access control policies, and those policies are later enforced so that access requests are granted or denied. To secure resources in SAS Viya there are three authorization systems of which you need to be aware.

The General Authorization system secures folders within the SAS Viya environment and the content of folders, for example, reports or data plans. It can also secure access to functionality.

The CAS Authorization system secures CAS libraries, tables (including rows and columns) and CAS actions.

The File system authorization system secures files and directories on the OS, for example code or source tables for CAS libraries.

In this post, I will provide a high-level overview of the General and CAS authorization systems.  If you want to dig into more detail please see the SAS Viya Administration Guide Authorization section.

An important factor in authorization is the identity of the user making the request. In a visual deployment of SAS Viya the General and CAS authorization systems use the same identity provider, an LDAP server. The other common feature between the two authorization systems is that they are deny-based. In other words, access to resources is implicitly disallowed by default. This is important as it marks a change for those familiar with metadata authorization in SAS 9.4.

You can administer both general and CAS authorization from SAS Environment Manager. CAS authorization may also be administered from CAS Server Monitor and from the programming interfaces via the accessControl action set. In SAS Viya 3.3, command-line interfaces are available to set authorization for both systems.

General Authorization System

The general authorization system is used to administer authorization for folders, content and functionality. The general authorization system is an attribute based authorization system which determines authorization based on the attributes of the:

  • Subject: attributes that describe the user attempting the access e.g. user, group, department, role, job title etc.,
  • Action: attributes that describe the action being attempted e.g. read, delete, view, update etc.
  • Resource (or object): attributes that describe the object being accessed (e.g. the object type, location, etc.)
  • Context (environment): attributes that deal with time, location etc.

This attribute model supports Boolean logic, in which rules contain “IF, THEN” statements about who is making the request, the resource, the context and the action.

In the general authorization system, information about the requesting user, the target resource, and the environment can influence access. Each access request has a context that includes environmental data such as time and device type. Environmental constraints can be incorporated using conditions.

Permission inheritance in the general authorization system flows through a hierarchy of containers. Each container conveys settings to its child members. Each child member inherits settings from its parent container. Containers can be folders, or rest endpoints which contain functionality. For example, a folder will pass on its permissions to any children which can be additional sub-folders, or content such as reports or data plans.

In the general authorization system precedence, the way in which permission conflicts are resolved, is very simple, the only factor that affects precedence is the type of rule (grant or prohibit). Prohibit rules have absolute precedence. If there is a relevant prohibit rule, effective access is always prohibited.

So, a deny anywhere in the object or identity hierarchy for the principal (user making the request) means that access is denied.

CAS Authorization

The CAS authorization system mostly focuses on data. It makes sense therefore that it is implemented in the style of a database management system (DBMS). DBMS style authorization systems focus on securing access to data. The permissions relate to data for example, read, write, update, select etc., and some CAS-specific ones like promote and limited promote.

Permission inheritance in the general authorization system flows through a hierarchy of objects, The hierarchy is CASLIB > table > rows/columns.

In the CAS authorization system precedence, the way in which permission conflicts are resolved is determined by where an access control is set and who can access control is assigned to.   The precedence rules are:

  • Direct access controls have precedence over inherited settings.
  • Identity precedence from highest to lowest is user > groups > authenticated users.

To put this another way, if a direct access control is found on an object it will determine access. If multiple direct access controls are found, a control for a user will be used over a control for a group, which will be similarly be used over a control for all authenticated users.  If no direct access control is found on, for example, a table, settings will be inherited from the CASLIB in a similar manner.

A final note on CASLIBSs, there may be additional authorization that needs to be considered to provide access to data. For example, for a path based CASLIB if host-layer access requirements are not met, grants in the CAS authorization layer do not provide access.

This has been a brief look at the two authorization systems in a SAS VIYA environment. The table below summarizes some of the information in this blog.

authorization in SAS Viya

As I noted at the start, you can find much more detail in the SAS Viya Administration Guide An introduction to authorization in SAS Viya was published on SAS Users.

12月 072017


In SAS Viya, deployments identities are managed by the environments configured identity provider. In Visual SAS Viya deployments the identity provider must be an LDAP (Lightweight Directory Access Protocol)  server. Initial setup of a SAS Viya Deployment requires configuration to support reading the identity information (users and groups) from LDAP. SAS Viya 3.3 adds support for multi-tenancy which has implications for the way users and groups must be stored in LDAP. For the SAS Administrator, this means at least a rudimentary understanding of LDAP is required. In this blog post, I will review some key LDAP basics for the SAS Viya administrator.

A basic understanding of LDAP l ensures SAS Viya administrators can speak the same language as the LDAP administrator.

What is LDAP?

LDAP is a lightweight protocol for accessing directory servers. A directory server is a hierarchical object orientated database. An LDAP server can be used to organize anything. One of the most common uses is as an identity management system, to organize user and group membership.

LDAP directories are organized in a tree manner:

  • A directory is a tree of directory entries.
  • An entry contains a set of attributes.
  • An attribute has a name, and one or more values.

LDAP basics for the SAS Viya administrator

Below is an entry for a user Henrik. It has common attributes like:

  • uid User id
  • cn Common Name
  • L Location
  • DisplayName: name to display

The attribute value pairs are the details of the entry.

The objectclass attribute is worth a special mention. Every entry has at least one objectclass attribute and often more than one. The objectclass is used to provide the rules for the object including required and allowed attributes. For example, the inetorgperson object class specifies attributes about people who are part of an organization, including items such as uid, name, employeenumber etc.

LDAP Tree

Let’s now look at the organization of the tree. DC is the “domain component.” You will often see examples of LDAP structures that use DNS names for the domain component, such as: dc=sas,dc=com. This is not required, but since DNS itself often implies organizational boundaries, it usually makes sense to use the existing naming structure. In this example the domain component is “dc=geldemo,dc=com”. The next level down is the organizational unit (ou).  An organizational unit is a grouping or collection of entries. Organizational units can contain additional organizational units.

But how do we find the objects we want in the directory tree? Every entry in a directory has a unique identifier, called the Distinguished Name (DN). The distinguished name is the full path to the object in the directory tree. For example, the distinguished name of Henrik is uid=Henrik,ou=users, ou=gelcorp,dc=viyademo,dc=com. The distinguished name is the path to the object from lowest to highest (yes it seems backward to me to).

LDAP Queries and Filters

Like any other database LDAP can be queried and it has its own particular syntax for defining queries. LDAP queries are boolean expressions in the format

<em><strong>attribute operator value</strong></em>

<em><strong>uid = sasgnn</strong></em>



Attribute can be any valid LDAP attribute (e.g name, uid, city etc.) and value is the value that you wish to search for.  The usual operators are available, including:

Using LDAP filters, you can link two or more Boolean expressions together using the “filter choices” and/or. Unusually, the LDAP “filter choices” are always placed in front of the expressions. The search criteria must be put in parentheses and then the whole term has to be bracketed one more time. Here are some examples of LDAP queries that may make the syntax easier to follow:

  • (sn=Jones): return all entries with a surname equal to Jones.
  • (objectclass=inetorgperson) return entries that use the inegorgperson object class.
  • (mail=*): return all entries that have the mail attribute.
  • (&(objectclass=inetorgperson)(o=Orion)): return all entries that use the inetorgperson object class and that have the organization attribute equal to Orion (people in the Orion organization).
  • (&(objectclass=GroupofNames)(|(o=Orion)(o=Executive))) return all entries that use the groupofNames object class and that have the organization attribute equal to Orion OR the organization attribute equal to Executive (groups in the Orion or Executive organizations).

Why do I need to know this?

How will you apply this LDAP knowledge in SAS Viya? To enable SAS Viya to access your identity provider, you must update the SAS Identities service configuration. As an administrator, the most common items to change are:

  • BaseDN the entry in the tree from which the LDAP server starts it search.
  • ObjectFilter the filter used to identity and limit the users and groups returned.

There is a separate BaseDN and ObjectFilter for users and for groups.

To return users and groups to SASVIYA from our example LDAP server we would set:

sas.identities.providers.ldap.group.BasedN=ou=gelcorp,ou=groups,dc=viyademo,dc=com

sas.identities.providers.ldap.users.BasedN= ou=gelcorp,ou=users,dc=viyademo,dc=com



This would tell SASVIYA to begin its search for users and groups at those locations in the tree.

The object filter will then determine what entries are returned for users and groups from a search of the LDAP tree starting at the BaseDN. For example:

sas.identities.providers.ldap.group.objectFilter:
(&amp;(objectClass=GroupOfNames)(o=GELCorp LTD))

sas.identities.providers.ldap.users.objectFilter:
(&amp;(objectClass=inetOrgPerson)(o=GELCorp LTD))



There are a lot of LDAP clients available that will allow you to connect to an LDAP server and view, query, edit and update LDAP trees and their entries. In addition, the ldif file format is a text file format that includes data and commands that provide a simple way to communicate with a directory so as to read, write, rename, and delete entries.

This has been a high-level overview of LDAP. Here are some additional sources of information that may help.

Basic LDAP concepts

LDAP Query Basics

Quick Introduction to LDAP

How To Use LDIF Files to Make Changes to an OpenLDAP System

LDAP basics for the SAS Viya administrator was published on SAS Users.

12月 072017


In SAS Viya, deployments identities are managed by the environments configured identity provider. In Visual SAS Viya deployments the identity provider must be an LDAP (Lightweight Directory Access Protocol)  server. Initial setup of a SAS Viya Deployment requires configuration to support reading the identity information (users and groups) from LDAP. SAS Viya 3.3 adds support for multi-tenancy which has implications for the way users and groups must be stored in LDAP. For the SAS Administrator, this means at least a rudimentary understanding of LDAP is required. In this blog post, I will review some key LDAP basics for the SAS Viya administrator.

A basic understanding of LDAP l ensures SAS Viya administrators can speak the same language as the LDAP administrator.

What is LDAP?

LDAP is a lightweight protocol for accessing directory servers. A directory server is a hierarchical object orientated database. An LDAP server can be used to organize anything. One of the most common uses is as an identity management system, to organize user and group membership.

LDAP directories are organized in a tree manner:

  • A directory is a tree of directory entries.
  • An entry contains a set of attributes.
  • An attribute has a name, and one or more values.

LDAP basics for the SAS Viya administrator

Below is an entry for a user Henrik. It has common attributes like:

  • uid User id
  • cn Common Name
  • L Location
  • DisplayName: name to display

The attribute value pairs are the details of the entry.

The objectclass attribute is worth a special mention. Every entry has at least one objectclass attribute and often more than one. The objectclass is used to provide the rules for the object including required and allowed attributes. For example, the inetorgperson object class specifies attributes about people who are part of an organization, including items such as uid, name, employeenumber etc.

LDAP Tree

Let’s now look at the organization of the tree. DC is the “domain component.” You will often see examples of LDAP structures that use DNS names for the domain component, such as: dc=sas,dc=com. This is not required, but since DNS itself often implies organizational boundaries, it usually makes sense to use the existing naming structure. In this example the domain component is “dc=geldemo,dc=com”. The next level down is the organizational unit (ou).  An organizational unit is a grouping or collection of entries. Organizational units can contain additional organizational units.

But how do we find the objects we want in the directory tree? Every entry in a directory has a unique identifier, called the Distinguished Name (DN). The distinguished name is the full path to the object in the directory tree. For example, the distinguished name of Henrik is uid=Henrik,ou=users, ou=gelcorp,dc=viyademo,dc=com. The distinguished name is the path to the object from lowest to highest (yes it seems backward to me to).

LDAP Queries and Filters

Like any other database LDAP can be queried and it has its own particular syntax for defining queries. LDAP queries are boolean expressions in the format

<em><strong>attribute operator value</strong></em>

<em><strong>uid = sasgnn</strong></em>



Attribute can be any valid LDAP attribute (e.g name, uid, city etc.) and value is the value that you wish to search for.  The usual operators are available, including:

Using LDAP filters, you can link two or more Boolean expressions together using the “filter choices” and/or. Unusually, the LDAP “filter choices” are always placed in front of the expressions. The search criteria must be put in parentheses and then the whole term has to be bracketed one more time. Here are some examples of LDAP queries that may make the syntax easier to follow:

  • (sn=Jones): return all entries with a surname equal to Jones.
  • (objectclass=inetorgperson) return entries that use the inegorgperson object class.
  • (mail=*): return all entries that have the mail attribute.
  • (&(objectclass=inetorgperson)(o=Orion)): return all entries that use the inetorgperson object class and that have the organization attribute equal to Orion (people in the Orion organization).
  • (&(objectclass=GroupofNames)(|(o=Orion)(o=Executive))) return all entries that use the groupofNames object class and that have the organization attribute equal to Orion OR the organization attribute equal to Executive (groups in the Orion or Executive organizations).

Why do I need to know this?

How will you apply this LDAP knowledge in SAS Viya? To enable SAS Viya to access your identity provider, you must update the SAS Identities service configuration. As an administrator, the most common items to change are:

  • BaseDN the entry in the tree from which the LDAP server starts it search.
  • ObjectFilter the filter used to identity and limit the users and groups returned.

There is a separate BaseDN and ObjectFilter for users and for groups.

To return users and groups to SASVIYA from our example LDAP server we would set:

sas.identities.providers.ldap.group.BasedN=ou=gelcorp,ou=groups,dc=viyademo,dc=com

sas.identities.providers.ldap.users.BasedN= ou=gelcorp,ou=users,dc=viyademo,dc=com



This would tell SASVIYA to begin its search for users and groups at those locations in the tree.

The object filter will then determine what entries are returned for users and groups from a search of the LDAP tree starting at the BaseDN. For example:

sas.identities.providers.ldap.group.objectFilter:
(&amp;(objectClass=GroupOfNames)(o=GELCorp LTD))

sas.identities.providers.ldap.users.objectFilter:
(&amp;(objectClass=inetOrgPerson)(o=GELCorp LTD))



There are a lot of LDAP clients available that will allow you to connect to an LDAP server and view, query, edit and update LDAP trees and their entries. In addition, the ldif file format is a text file format that includes data and commands that provide a simple way to communicate with a directory so as to read, write, rename, and delete entries.

This has been a high-level overview of LDAP. Here are some additional sources of information that may help.

Basic LDAP concepts

LDAP Query Basics

Quick Introduction to LDAP

How To Use LDIF Files to Make Changes to an OpenLDAP System

LDAP basics for the SAS Viya administrator was published on SAS Users.
