Bayesian

12月 222014

As a follow-up to my previous Christmas blog post, Twas the night before big data,  I give you ... Bayesian network, the directed acyclic graphical (DAG) model ( yeah, yeah, I know it doesn’t quite have the same ring as last year’s title, but you'll recognize the tune) You know Linear and […]
10月 212013

 “Visually, it’s easier to present uncertainty.” – Nate Silver About a year ago, I approached the chair-elect of the Biopharmaceutical Section of the American Statistical Association and asked "How can I be involved?" He replied that there was a podcasting initiative they were hoping to get off the ground, and [...]
10月 212013

 “Visually, it’s easier to present uncertainty.” – Nate Silver About a year ago, I approached the chair-elect of the Biopharmaceutical Section of the American Statistical Association and asked "How can I be involved?" He replied that there was a podcasting initiative they were hoping to get off the ground, and [...]
4月 172013

It’s no secret that JMP excels in the visual exploration of data. There’s a healthy dose of statistics, too. But when asked about Bayesian methods, JMP is probably not the first software package that comes to mind. JMP 10 does contain Bayesian D-optimal and I-optimal designs in our design of experiments (DOE) features, [...]
9月 212012


A latest updated post on Freakonomics, Beware the Weasel Word “Statistical” in Statistical Significance!,  seemed to attempt to challenge frequentist statistics by Bayesian. I have no research on Bayesian and won’t jump to the debates. I’d rather to use this case to apply the Dragon’s Teeth and Fleas logic of hypothesis testing (at least I think frequentist is pretty intuitive).

A story goes with this post, that Bob won 20 times out of total 30 rounds with Alice in a children card game, “War”. War itself is a totally random game, so everyone is supposed to have 50% chance to win in a fair game. Since Bob won 20 out of 30, the question raised: is he cheating?

To answer this question, just follow the Dragon’s Teeth and Fleas logic of hypothesis testing:

  • First, assume they are dragon’s teeth; in this case, we assume it is a fair game that everyone has probability of 0.5 to win.
  • Under this assumption, we know the the number of winning follows binomial distribution with probability of 0.5. Now we should check Bob’s 20 winning in 30 in this distribution: is this output extreme, or is it a flea?
  • We then get the p-Value calculated by P(X>=20) which means the chance of winning 20 times and more in 30 games (as extreme or even more extreme ), is 0.0494. Here we only think about winning, so it is a one-sided test. Since this p-Value is less than the default significance level of 0.05 (IT IS A FLEA!), we reject the null and think this is more likely not a fair game (Bob is cheating in this statistical point of view).

Bob

That’s all the story. Then this post goes, “Although the procedure is mathematically well defined, it is nonsense”. The following is the first reason listed in the post:

To calculate the probability of Bob’s winning at least 20 games, you use not only the data that you saw (that Bob won 20 games out of 30) but also the imaginary data of Bob winning 21 out of 30 games, or 22 out of 30 games, all the way up to Bob winning all 30 games. The idea of imaginary data is oxymoronic.

In my opinion, the so called “imaginary data” are just the data filling out the binomial distribution (under the assumption of true null hypothesis) we got before and they are not oxymoronic at all (sorry I use “data” as plural).

What do you think? I can’t go far away from here due to my limit knowledge of Bayesian.

————-appendix: SAS Codes and Outputs——————

data a;
    input output count;
datalines;
0 20
1 10
;

proc freq data=a;
    tables output /binomialc (p=0.5) alpha=0.05;
    exact binomial;
    weight count;
run;

Bob_SAS

2月 012011



In Chapter 2 of the book "Bayesian Computation with R" by Jim Albert, the philosoph of Bayesian statistics is introduced using an example where a parameter regarding proportion of heavy sleeping college students, i.e. those have more than 8 hours sleep a day, is studied. According to Bayes'Rule, the posterior is proportional to the product of prior probability and likelihood given prior, where the proportion factor is the likelihood of data over the whole parameter space. As we can see, the key point here is the specification of prior probability.

In order to illustrate this idea, Jim introduced three types of prior probability:
1. Prior probability over a discrete grid of choice, given a weight which serves as hyper-parameter;
2. Prior probability by a chosen probability. In most cases, the chosen probability is a so called conjugate prior becuase the posterior is the same family as the prior. In the book, a beta probability is chosen and it is conjugate in the sense that the posterior is also a beta distribution, only with different parameter;
3. A dense grid of prior probability choices which is called histogram prior;


Using a discrete grid of prior choices, we first generate a list of prior probabilities, in data set PRIOR, that we believe the true proportion of heavy sleepers should be, and assign a weight, i.e. the magnitude of credibility, for each choice in a data set P, which serves as hyper-parameter. We then consolidate the two data sets into one and plot the prior against its corresponding weight.


/* Chapter 2 of Bayesian Computation with SAS */
/* In this chapter, Jim talked about applying
   Bayesian Rule to learn posterior probability
   using an example where the proportion of
   students sleeping over 8 hours a day is studies.
   Bayes Rule:
     Posterior(p|data) \prop Prior(p)* likelihood(data|p)
*/
options fullstimer formchar='|----|+|---+=|-/\<>*'  error=3;
/***************************************************/
data prior;
     input prior @@;
cards;
2 4 8 8 4 2 1 1 1 1
;
run;

data p;
     do p=0.05 to 0.95 by 0.1;
     output;
  end;
run;

data p;
     retain sum_prior 0;
     do until (eof1);
        set prior end=eof1;
        sum_prior+prior;
     end;
     do until (eof2);
        merge p  prior  end=eof2;
        prior=prior/sum_prior;
        drop sum_prior;
        output;
     end;
run;

goptions reset=all;
symbol  interpol=Needle  value=none  line=1 color=black;
axis1   label=(angle=90  'Prior Probability') order=(0 to 0.3 by 0.1) minor=none;
axis2   label=('p')   order=(0 to 1 by 0.2)  minor=none;
proc gplot data=p;
      plot prior*p /vaxis=axis1  haxis=axis2;
run;quit;



Next, we calculate the posterior probability given prior and likelihood conditional on prior. In the code below, we observe 11 heavy sleepers out of a total sample of 27. The first DATA STEP calculates the likelihood conditional on each prior choice, the posterior is output in the data set P2, where the normalization factor is the sum of conditional likelihood, scaled by max likelihood for numerical stability. You can observe the shape of posterior against hyper-parameter using GPLOT. The INTERPOL=NEEDLE option in SYMBOL statement minic the histogram style line of PLOT function in R.


%let n0=16;
%let n1=11;

data p;
     set p  end=eof1  nobs=ntotal;
     if p>0 & p<1 then do;
        log_like=log(p)*&n1 + log(1-p)*&n0;
     end;
     else
        log_like=-999*(p=0)*(&n1>0) + (p=1)*(&n0>0);
     log_posterior=log(prior) + log_like;
     if log_posterior>max_like then max_like=log_posterior;
run;

proc means data=p  noprint;
     var log_posterior;
     output out=_max  max(log_posterior)=max;
run;

data p2;
     set _max;
     sum_post=0;
     do until (eof);
        set p  end=eof;
        sum_post+exp(log_posterior-max);
     end;
     do until (eof2);
        set p end=eof2;
        posterior=exp(log_posterior-max)/sum_post;
        output;
        keep p prior  posterior;
     end;
run;

goptions reset=all;
symbol value=NONE interpol=Needle;
axis1  label=(angle=90  'Posterior Probability');
axis2  label=('p');
proc gplot data=p2;
      plot  posterior*p /vaxis=axis1  haxis=axis2;
run;quit;




After tried discrete grid of prior, beta conjugate prior is introduced. Jim mentioned that by matching the believed 50% and 90% percentiles, the parameter of prior beta distribution can be obtained by try-and-error approach. We note that the believed percentiles data indicates that the beta distribution skewed to 0, so that parameter alpha is less than parameter beta and we can use a binary search to nail down the values, which I came down to approximately 3.4 and 7.5. But I will use the {3.4, 7.4} vector as in the book. Since beta distribution is a conjugate prior for proportion, the computation is very easy. The curves for prior, likelihood and posterior are visualized.


/* beta prior */

%let a=3.4;
%let b=7.4;
%let s=11;
%let f=16;

data p;
      do i=1 to 500;
      p=i/500;
   prior=pdf('beta', p, &a, &b);
   like=pdf('beta', p, &s, &f);
   post=pdf('beta', p, &a+&s, &b+&f);
   drop i;
   output;
   end;
run;

goptions reset=all;
symbol1 interpol=j  color=red  width=1  value=none;
symbol2 interpol=j  color=blue width=2  value=none;
symbol3 interpol=j  color=gree width=3  value=none;
axis1   label=(angle=90  'Density')  order=(0 to 5 by 1) minor=none;
axis2   label=('p')      order=(0 to 1 by 0.2)  minor=none;;
legend label=none   position=(top right inside)  mode=share;
proc gplot data=p;
      plot post*p   prior*p  like*p  /overlay
                                      vaxis=axis1
                                      haxis=axis2
                                      legend=legend;
run;quit;



Since we obtain closed form for posterior distribution, we can conduct inference based on exact calculation; alternatively, we can use simulated random sample.

/* generate 1000 random obs from posterior distribution */
data rs;
      call streaminit(123456);
      do i=1 to 1000;
         x=rand('beta', &a+&s, &b+&f);
   output;
   end;
run;

proc univariate data=rs  noprint;
     var x;
     histogram /midpoints=0 to 0.8 by 0.05
                cbarline=blue  cfill=white
                outhistogram=hist;
     title "Histogram of ps";
run;
title;

axis1 label=(angle=90 "Frequency");
proc gbarline data=hist;
      bar _midpt_/discrete  sumvar=_count_  space=0  axis=axis1 ;
   title "Histogram of ps";
run;
title;

/* hist prior */
data midpt;
     do pt=0.05 to 0.95 by 0.1;
        output;
     end;
run;


In the book, Jim also mentioned using so called Histogram prior. The Histogram prior is a densed-version of discrete prior, with the distance between discrete choices filled in with dense choices of the same value, separated only by a small distance. It provides a more refined description of prior believe than the discrete prior. We plot the prior and posterior as well as random sample from posterior to give a visual impression. Note that we use PROC STDIZE method=SUM to normalize prior variable.


data prior;
      input prior @@;
datalines;
2 4 8 8 4 2 1 1 1 1
;
run;
proc stdize data=prior  method=sum  out=prior; var prior; run;

data _null_;
     set midpt nobs=ntotal1;
     call symput('nmid', ntotal1);
     set prior nobs=ntotal2;
     call symput('nprior', ntotal2);
     stop;
run;

data histprior;
      array _midpt{&nmid} _temporary_;
      array _prior{&nprior} _temporary_;
      if _n_=1 then do;
         k=1;
         do until (eof1);
            set midpt  end=eof1;
            _midpt[k]=pt; if k=2 then lo=_midpt[k]-_midpt[k-1];
            k+1;
         end;
         do k=1 to &nmid;
            _midpt[k]=round(_midpt[k]-lo/2, 0.00001);
            put _midpt[k]=;
         end;
         k=1;
         do until (eof2);
            set prior  end=eof2;
            _prior[k]=prior;
            put k=  _prior[k]=;
            if k<&nprior then k=k+1;
         end;
         drop k  lo;
      end;

      do p=1/500 to 1 by 1/500;
         sk=0;
         do k=1 to &nmid;
            if p>=_midpt[k] then sk=min(&nmid, sk+1);
         end;
         histprior=_prior[sk];
         output;
     end;
     stop;
run;


goptions reset=all;
symbol interpol=hiloj;
axis1  label=(angle=90  "Prior Density")  order=(0 to 0.3 by 0.05);
axis2  label=("p")                        order=(0 to 1   by 0.2);
proc gplot data=histprior;
      plot histprior*p /vaxis=axis1  haxis=axis2;
run;quit;

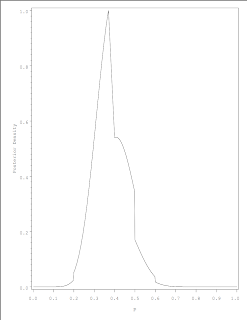

data histposterior;
     set histprior;
     like=pdf('BETA',p,  &s+1, &f+1);
     post=like*histprior;
run;


%put &s;
goptions reset=all;
symbol interpol=hiloj;
axis1 label=(angle=90  "Posterior Density")  order=(0 to 1 by 0.2);
proc gplot data=histposterior;
      plot   post*p/vaxis=axis1;
run;quit;

proc means data=histposterior  sum;
     var post;
run;

proc stdize data=histposterior  method=sum  out=data1;
      var post;
run;
proc means data=data1  sum;
      var post;
run;



In R, the SAMPLE function is able to do a URS sampling with given probability. SAS's PROC SURVEYSELECT seems can't do this with method=URS. But URS sampling with given probability is very easy to code in SAS DATA STEP with the help of FORMAT.


data fmt;
     merge histposterior(rename=(post=start))
     histposterior(firstobs=2   in=_2    rename=(post=end));
     if _2;
run;

data fmt;
     set data1   end=eof;
     retain start;
     retain fmtname 'ursp'  type 'n';
     if _n_=1 then start=post;
     else do;
        end=start+post;  label=p;
        keep  fmtname  start  end  label;
        output;
        start=end;
     end;
     if eof then do;
        hlo='O';
        label=.;
        output;
     end;
run;

proc sort data=fmt  nodupkey  out=fmt;
     by start end;
run;

proc format cntlin=fmt; run;

data  samp;
      do i=1 to 1000;
         p=input(put(ranuni(78686), ursp.), best.);
         output;
      end;
run;

proc univariate data=samp noprint;
     title "Histogram of ps";
     histogram  p/midpoints=0.15 to 0.65 by 0.05
                  outhist=samp_hist
                  vaxislabel="Frequency"  vscale=count;
run;
title;


Once we obtain posterior distribution of a variable, we can easily predict the value of some statistics given new samples. In the book, depending on the choice of weighting density, two types of predictions are discussed: 1. prior prediction; 2. posterior prediction. The calculation is straight-forward given formula.


/* prediction */
data prior;
     input prior @@;
cards;
2 4 8 8 4 2 1 1 1 1
;
run;

data p;
     do p=0.05 to 0.95 by 0.1;
     output;
  end;
run;

data p;
      retain sum_prior 0;
   do until (eof1);
      set prior end=eof1;
   sum_prior+prior;
   end;
   do until (eof2);
      merge p  prior  end=eof2;
   prior=prior/sum_prior;
   drop sum_prior;
   output;
   end;
run;

/* prediction using discrete prior */
%let m=20;
data pred;
        do ys=0 to &m;
      pred=0;
            do i=1 to 10;
                set p   point=i;
    pred = pred + prior * pdf('BINOMIAL', ys, p, &m);
    put p=  prior=  pred=  ;
   end;
   output;
  end;
  stop;
run;

/* prediction using beta(a, b) prior */
%let m=20;
%let a=3.4;
%let b=7.4;
data pred;
     do ys=0 to &m;
       pred=comb(&m, ys) *exp(logbeta(&a + ys, &b+&m -ys) - logbeta(&a, &b));
       output;
     end;
run;

/* prediction by simulation */
%let n=1000;
data pred;
        do i=1 to &n;
      p=rand('BETA', &a, &b);
   ys=rand('BINOMIAL', p, &m);
   drop i;
   output;
    end;
run;

proc freq data=pred  noprint;
        table ys /out=y_freq;
run;
/*
proc gbarline data=y_freq;
        bar y /discrete sumvar=percent;
run;quit;
*/
data y_freq;
        set y_freq;
  percent=percent/100;
  label ys='y';
run;

goptions reset=all  border;
axis1  label=(angle=90  "Predictive Probability")  order=(0 to 0.14 by 0.02);
axis2  label=("y")   order=(0 to 16) offset=(15 points, 15 points) minor=none;
symbol  interpol=needle;
proc gplot data=y_freq;
        plot  percent * ys/vaxis=axis1  haxis=axis2  ;
run;quit;

/* summarize discrete outcome with given coverage probability */
/* input dsn is y_freq from PROC FREQ. The following can be used as gauge.
data y_freq;
        input y percent;
datalines;
0  0.013
1  0.032
2  0.065
3  0.103
4  0.102
5  0.115
6  0.114
7  0.115
8  0.095
9  0.083
10 0.058
11 0.036
12 0.029
13 0.014
14 0.015
15 0.006
16 0.005
;
run;
*/
%let covprob=0.9;
proc sort data=y_freq  out=y_freq2;
        by  percent;
run;

data y_freq2;
        set y_freq2;
  retain cumprob  0;
  cumprob+percent;
  if cumprob<(1-&covprob) then select=0;
  else select=1;
run;

proc means data=y_freq2  sum;
       where select=1;
    var percent;
run;


In Summary:

0. There different choices for specifying Prior believe that can be incorporated into Bayesian computation:
   a.) A discrete grid of possible values, each value with some probability
   b.) An appropriate distribution, where the parameters is determined from existing information
   c.) A dense grid of possible values that span the whole range

1. We demonstrated calculation under these three scenarios and their impact on posterior distribution of statistics of interests;

2. We can conduct Sampling With Replacement with given sampling probability by using FORMAT and uniform random variable generator

3. We demonstrated that prediction in a Bayesian framework is straighforward, but depending on whether we use prior distribution or posterior distribution

Bayesian Computation with R (Use R)

 Posted by at 11:47 下午
2月 012011

In Chapter 2 of the book "Bayesian Computation with R" by Jim Albert, the philosoph of Bayesian statistics is introduced using an example where a parameter regarding proportion of heavy sleeping college students, i.e. those have more than 8 hours sleep a day, is studied. According to Bayes'Rule, the posterior is proportional to the product of prior probability and likelihood given prior, where the proportion factor is the likelihood of data over the whole parameter space. As we can see, the key point here is the specification of prior probability.

In order to illustrate this idea, Jim introduced three types of prior probability:
1. Prior probability over a discrete grid of choice, given a weight which serves as hyper-parameter;
2. Prior probability by a chosen probability. In most cases, the chosen probability is a so called conjugate prior becuase the posterior is the same family as the prior. In the book, a beta probability is chosen and it is conjugate in the sense that the posterior is also a beta distribution, only with different parameter;
3. A dense grid of prior probability choices which is called histogram prior;


Using a discrete grid of prior choices, we first generate a list of prior probabilities, in data set PRIOR, that we believe the true proportion of heavy sleepers should be, and assign a weight, i.e. the magnitude of credibility, for each choice in a data set P, which serves as hyper-parameter. We then consolidate the two data sets into one and plot the prior against its corresponding weight.


/* Chapter 2 of Bayesian Computation with SAS */
/* In this chapter, Jim talked about applying
Bayesian Rule to learn posterior probability
using an example where the proportion of
students sleeping over 8 hours a day is studies.
Bayes Rule:
Posterior(p|data) \prop Prior(p)* likelihood(data|p)
*/
options fullstimer formchar='|----|+|---+=|-/\<>*' error=3;
/***************************************************/
data prior;
input prior @@;
cards;
2 4 8 8 4 2 1 1 1 1
;
run;

data p;
do p=0.05 to 0.95 by 0.1;
output;
end;
run;

data p;
retain sum_prior 0;
do until (eof1);
set prior end=eof1;
sum_prior+prior;
end;
do until (eof2);
merge p prior end=eof2;
prior=prior/sum_prior;
drop sum_prior;
output;
end;
run;

goptions reset=all;
symbol interpol=Needle value=none line=1 color=black;
axis1 label=(angle=90 'Prior Probability') order=(0 to 0.3 by 0.1) minor=none;
axis2 label=('p') order=(0 to 1 by 0.2) minor=none;
proc gplot data=p;
plot prior*p /vaxis=axis1 haxis=axis2;
run;quit;



Next, we calculate the posterior probability given prior and likelihood conditional on prior. In the code below, we observe 11 heavy sleepers out of a total sample of 27. The first DATA STEP calculates the likelihood conditional on each prior choice, the posterior is output in the data set P2, where the normalization factor is the sum of conditional likelihood, scaled by max likelihood for numerical stability. You can observe the shape of posterior against hyper-parameter using GPLOT. The INTERPOL=NEEDLE option in SYMBOL statement minic the histogram style line of PLOT function in R.


%let n0=16;
%let n1=11;

data p;
set p end=eof1 nobs=ntotal;
if p>0 & p<1 then do;
log_like=log(p)*&n1 + log(1-p)*&n0;
end;
else
log_like=-999*(p=0)*(&n1>0) + (p=1)*(&n0>0);
log_posterior=log(prior) + log_like;
if log_posterior>max_like then max_like=log_posterior;
run;

proc means data=p noprint;
var log_posterior;
output out=_max max(log_posterior)=max;
run;

data p2;
set _max;
sum_post=0;
do until (eof);
set p end=eof;
sum_post+exp(log_posterior-max);
end;
do until (eof2);
set p end=eof2;
posterior=exp(log_posterior-max)/sum_post;
output;
keep p prior posterior;
end;
run;

goptions reset=all;
symbol value=NONE interpol=Needle;
axis1 label=(angle=90 'Posterior Probability');
axis2 label=('p');
proc gplot data=p2;
plot posterior*p /vaxis=axis1 haxis=axis2;
run;quit;




After tried discrete grid of prior, beta conjugate prior is introduced. Jim mentioned that by matching the believed 50% and 90% percentiles, the parameter of prior beta distribution can be obtained by try-and-error approach. We note that the believed percentiles data indicates that the beta distribution skewed to 0, so that parameter alpha is less than parameter beta and we can use a binary search to nail down the values, which I came down to approximately 3.4 and 7.5. But I will use the {3.4, 7.4} vector as in the book. Since beta distribution is a conjugate prior for proportion, the computation is very easy. The curves for prior, likelihood and posterior are visualized.


/* beta prior */

%let a=3.4;
%let b=7.4;
%let s=11;
%let f=16;

data p;
do i=1 to 500;
p=i/500;
prior=pdf('beta', p, &a, &b);
like=pdf('beta', p, &s, &f);
post=pdf('beta', p, &a+&s, &b+&f);
drop i;
output;
end;
run;

goptions reset=all;
symbol1 interpol=j color=red width=1 value=none;
symbol2 interpol=j color=blue width=2 value=none;
symbol3 interpol=j color=gree width=3 value=none;
axis1 label=(angle=90 'Density') order=(0 to 5 by 1) minor=none;
axis2 label=('p') order=(0 to 1 by 0.2) minor=none;;
legend label=none position=(top right inside) mode=share;
proc gplot data=p;
plot post*p prior*p like*p /overlay
vaxis=axis1
haxis=axis2
legend=legend;
run;quit;



Since we obtain closed form for posterior distribution, we can conduct inference based on exact calculation; alternatively, we can use simulated random sample.

/* generate 1000 random obs from posterior distribution */
data rs;
call streaminit(123456);
do i=1 to 1000;
x=rand('beta', &a+&s, &b+&f);
output;
end;
run;

proc univariate data=rs noprint;
var x;
histogram /midpoints=0 to 0.8 by 0.05
cbarline=blue cfill=white
outhistogram=hist;
title "Histogram of ps";
run;
title;

axis1 label=(angle=90 "Frequency");
proc gbarline data=hist;
bar _midpt_/discrete sumvar=_count_ space=0 axis=axis1 ;
title "Histogram of ps";
run;
title;

/* hist prior */
data midpt;
do pt=0.05 to 0.95 by 0.1;
output;
end;
run;


In the book, Jim also mentioned using so called Histogram prior. The Histogram prior is a densed-version of discrete prior, with the distance between discrete choices filled in with dense choices of the same value, separated only by a small distance. It provides a more refined description of prior believe than the discrete prior. We plot the prior and posterior as well as random sample from posterior to give a visual impression. Note that we use PROC STDIZE method=SUM to normalize prior variable.


data prior;
input prior @@;
datalines;
2 4 8 8 4 2 1 1 1 1
;
run;
proc stdize data=prior method=sum out=prior; var prior; run;

data _null_;
set midpt nobs=ntotal1;
call symput('nmid', ntotal1);
set prior nobs=ntotal2;
call symput('nprior', ntotal2);
stop;
run;

data histprior;
array _midpt{&nmid} _temporary_;
array _prior{&nprior} _temporary_;
if _n_=1 then do;
k=1;
do until (eof1);
set midpt end=eof1;
_midpt[k]=pt; if k=2 then lo=_midpt[k]-_midpt[k-1];
k+1;
end;
do k=1 to &nmid;
_midpt[k]=round(_midpt[k]-lo/2, 0.00001);
put _midpt[k]=;
end;
k=1;
do until (eof2);
set prior end=eof2;
_prior[k]=prior;
put k= _prior[k]=;
if k<&nprior then k=k+1;
end;
drop k lo;
end;

do p=1/500 to 1 by 1/500;
sk=0;
do k=1 to &nmid;
if p>=_midpt[k] then sk=min(&nmid, sk+1);
end;
histprior=_prior[sk];
output;
end;
stop;
run;


goptions reset=all;
symbol interpol=hiloj;
axis1 label=(angle=90 "Prior Density") order=(0 to 0.3 by 0.05);
axis2 label=("p") order=(0 to 1 by 0.2);
proc gplot data=histprior;
plot histprior*p /vaxis=axis1 haxis=axis2;
run;quit;

data histposterior;
set histprior;
like=pdf('BETA',p, &s+1, &f+1);
post=like*histprior;
run;


%put &s;
goptions reset=all;
symbol interpol=hiloj;
axis1 label=(angle=90 "Posterior Density") order=(0 to 1 by 0.2);
proc gplot data=histposterior;
plot post*p/vaxis=axis1;
run;quit;

proc means data=histposterior sum;
var post;
run;

proc stdize data=histposterior method=sum out=data1;
var post;
run;
proc means data=data1 sum;
var post;
run;



In R, the SAMPLE function is able to do a URS sampling with given probability. SAS's PROC SURVEYSELECT seems can't do this with method=URS. But URS sampling with given probability is very easy to code in SAS DATA STEP with the help of FORMAT.


data fmt;
merge histposterior(rename=(post=start))
histposterior(firstobs=2 in=_2 rename=(post=end));
if _2;
run;

data fmt;
set data1 end=eof;
retain start;
retain fmtname 'ursp' type 'n';
if _n_=1 then start=post;
else do;
end=start+post; label=p;
keep fmtname start end label;
output;
start=end;
end;
if eof then do;
hlo='O';
label=.;
output;
end;
run;

proc sort data=fmt nodupkey out=fmt;
by start end;
run;

proc format cntlin=fmt; run;

data samp;
do i=1 to 1000;
p=input(put(ranuni(78686), ursp.), best.);
output;
end;
run;

proc univariate data=samp noprint;
title "Histogram of ps";
histogram p/midpoints=0.15 to 0.65 by 0.05
outhist=samp_hist
vaxislabel="Frequency" vscale=count;
run;
title;




Once we obtain posterior distribution of a variable, we can easily predict the value of some statistics given new samples. In the book, depending on the choice of weighting density, two types of predictions are discussed: 1. prior prediction; 2. posterior prediction. The calculation is straight-forward given formula.


/* prediction */
data prior;
input prior @@;
cards;
2 4 8 8 4 2 1 1 1 1
;
run;

data p;
do p=0.05 to 0.95 by 0.1;
output;
end;
run;

data p;
retain sum_prior 0;
do until (eof1);
set prior end=eof1;
sum_prior+prior;
end;
do until (eof2);
merge p prior end=eof2;
prior=prior/sum_prior;
drop sum_prior;
output;
end;
run;

/* prediction using discrete prior */
%let m=20;
data pred;
do ys=0 to &m;
pred=0;
do i=1 to 10;
set p point=i;
pred = pred + prior * pdf('BINOMIAL', ys, p, &m);
put p= prior= pred= ;
end;
output;
end;
stop;
run;

/* prediction using beta(a, b) prior */
%let m=20;
%let a=3.4;
%let b=7.4;
data pred;
do ys=0 to &m;
pred=comb(&m, ys) *exp(logbeta(&a + ys, &b+&m -ys) - logbeta(&a, &b));
output;
end;
run;

/* prediction by simulation */
%let n=1000;
data pred;
do i=1 to &n;
p=rand('BETA', &a, &b);
ys=rand('BINOMIAL', p, &m);
drop i;
output;
end;
run;

proc freq data=pred noprint;
table ys /out=y_freq;
run;
/*
proc gbarline data=y_freq;
bar y /discrete sumvar=percent;
run;quit;
*/
data y_freq;
set y_freq;
percent=percent/100;
label ys='y';
run;

goptions reset=all border;
axis1 label=(angle=90 "Predictive Probability") order=(0 to 0.14 by 0.02);
axis2 label=("y") order=(0 to 16) offset=(15 points, 15 points) minor=none;
symbol interpol=needle;
proc gplot data=y_freq;
plot percent * ys/vaxis=axis1 haxis=axis2 ;
run;quit;

/* summarize discrete outcome with given coverage probability */
/* input dsn is y_freq from PROC FREQ. The following can be used as gauge.
data y_freq;
input y percent;
datalines;
0 0.013
1 0.032
2 0.065
3 0.103
4 0.102
5 0.115
6 0.114
7 0.115
8 0.095
9 0.083
10 0.058
11 0.036
12 0.029
13 0.014
14 0.015
15 0.006
16 0.005
;
run;
*/
%let covprob=0.9;
proc sort data=y_freq out=y_freq2;
by percent;
run;

data y_freq2;
set y_freq2;
retain cumprob 0;
cumprob+percent;
if cumprob<(1-&covprob) then select=0;
else select=1;
run;

proc means data=y_freq2 sum;
where select=1;
var percent;
run;


In Summary:

0. There different choices for specifying Prior believe that can be incorporated into Bayesian computation:
   a.) A discrete grid of possible values, each value with some probability
   b.) An appropriate distribution, where the parameters is determined from existing information
   c.) A dense grid of possible values that span the whole range

1. We demonstrated calculation under these three scenarios and their impact on posterior distribution of statistics of interests;

2. We can conduct Sampling With Replacement with given sampling probability by using FORMAT and uniform random variable generator

3. We demonstrated that prediction in a Bayesian framework is straighforward, but depending on whether we use prior distribution or posterior distribution

Bayesian Computation with R (Use R)

 Posted by at 11:47 下午
1月 042011



The book "Bayesian Computation with R" by Jim Albert is an easy to read entry level book on applied Bayesian Statistics. While the book was written for R users, it is not difficult to translate the languages between R and SAS and I believe it is a good way to show Bayesian capability of SAS. In the next several months, I am going to translate all R code in the book into SAS. Readers are encouraged to buy this book to understand what's behind the code. The posts here will only spend minimum effects to explain the statistics underlying while most resource will still be denoted to SAS coding.

This post will cover Chapter 1.

We first follow section 1.2.2, using PROC IMPORT to read in TAB deliminated file, which corresponds to read.table(file, sep='\t', header=T)  in R. We also designated PDF as Output Destination.

/* Chapter 1 of Bayesian Computation with R */

%let folder=C:\Documents\SAS for Bayesian Compu with R;
%let datafolder=&folder\data;

libname data "&datafolder";
options missing='.' formchar = "|----|+|---+=|-/\<>*"  errors=2 fullstimer;

/*@@@@@@ Section 1.2.2 @@@@@*/
/*--> Read Tab Deliminated Data into SAS */
proc import datafile="&datafolder/studentdata.txt"  out=student dbms=dlm   replace;
      datarow=2;       /* redundent with GETNAMES= statement */
   guessingrows=2;  /* Only use first 2 rows of data to guess the type of data */
      delimiter='09'x;  /* this is redudent if we specify DBMS=TAB in PROC IMPORT option */
   getnames=YES;  /* This is the same as 'header=True' in R's table.read function */
run;

ods pdf file="&folder/Chapter1.pdf";
/*-->  To see Variable Names and print first row of this data
   Use SPLIT="*" to specify the split character being "*", which controls
   line breaks in column headings
*/
proc print data=student(obs=1)  split="*"; run;

SAS output looks like:
Section 1.2.3, summarize frequency tables and use Barplot to visualize the counts.

PROC FREQ directly corresponds to table() function in R, but provides much richer functionality. PROC GBARLINE is used to answer what barplot() does in R. The LABEL= statement in SAS is a very handy tool for annotation purpose for PRINT or GRAPH.

PROC MEANS somehow corresponds to summary() function to obtain summary statistics for quantitative variables. You can sepecify MAXDEC= to keep desired number of decimals in print out.
Histogram can be obtained in SAS via either PROC UNIVARIATE or newly introduced PROC SGPLOT. PROC UNIVARIATE provides more control though. As shown below, you can specify desired mid-points while you can't do so in SGPLOT. On the other hand, SGPLOT is very convenient if you want to overlay density curve, either a normal fit or kernel one.


/*@@@@ section 1.2.3 @@@*/
/*--> To summarize and graph a single Batch */
proc freq data=student;
     table Drink;
run;

/*--> Barplot on single variable */
title "Original idea, summarize and plot";
proc freq data=student  noprint;
      table Drink /out=t;
run;
goptions reset=all noborder;
proc gbarline data=t;
      bar  Drink /discrete space=4  sumvar=count;
run;quit;
title;
/*--> Actually, in SAS, it is better to directly use
    PROC GBARLINE */
goptions reset=all noborder;
title "In SAS, PROC GBARLINE directly summarize";
proc gbarline data=student;
      bar Drink /discrete space=3 ;
run;quit;
title;

data student;
      set student;
   hours_of_sleep=WakeUp-ToSleep;
   /* Label can be useful for annotation purpose */
   label hours_of_sleep="Hours Of Sleep";
run;

proc means data=student
           /* Request same statistics as in the book */
           min q1 median q3 max  nmiss
           /* MAXDEC= specifies keeping 2 decimals */
           maxdec=2;
    var hours_of_sleep;
run;

/*--> Histogram using PROC UNIVARIATE */
proc univariate data=student  noprint;
      var hours_of_sleep;
   histogram /midpoints=2.5 to 12.5 by 1;
run;

/* new SGPLOT is a handy way to draw histogram and density */
proc sgplot data=student;
      histogram hours_of_sleep/scale=count;
      density   hours_of_sleep/scale=count  type=normal;
run;

Compare SAS outputs:





Boxplot to visualize distribution of  quantitative variables by some classification variable. Here, formula such as var1*var2 style corresponds to var1~var2 style in R.


/*@@@ section 1.2.4 @@@@*/
/*---> Compare Batches using Boxplot */
proc sort data=student out=studentsorted; by Gender; run;
proc boxplot data=studentsorted;
      plot  hours_of_sleep*Gender;
run;

proc means data=student
            min q1 median q3 max nmiss
            nway  maxdec=2;
     class Gender;
  var  Haircut;
run;

SAS output looks like:




R has built-in jitter function, however, we have to make our own in SAS. This verision doesn't apply Fuzzy yet, only for demo purpose.


%macro jitter(var, newname, data=last, factor=1, amount=);
/* follow the JITTER function in R, no fuzzy applied yet .
   if amount is given, then use this value for disturbance
   else if amount is 0, then use the range of &var for disturbance
   else if amount is NULL, then use the smallest difference among
        distinct values of &var for disturbance. if all values are
        the same, then use the value obtained from range

   if range of &var is 0, then use the lower range for disturbance
   otherwise
*/
%let blank=%str( );
%if &data=' ' %then %let data=last;
%local fid;

data _null_;
     fid=round(ranuni(0)*10000, 1);
  call symput('fid', compress(fid));
run;
proc means data=&data  noprint;
     var &var;
  output  out=_util&fid
          range(&var)=range
          min(&var)=min
          max(&var)=max;
run;
data _util&fid;
     set _util&fid;
  if range^=0 then z=range; else z=min;
  if z=0 then z=1;
run;

%if %eval(&amount=&blank) %then %do;
    proc sort data=&data.(keep=&var  where=(&var^=.))
              out=_xuti&fid  nodupkey;
       by &var;
 run;
 data _duti&fid;
      set _xuti&fid  nobs=ntotal  end=eof;
   array _x{2} _temporary_;
   if ntotal=1 then do;
      amount=&factor/50*abs(&var);
   keep amount;
   output;
   stop;
   end;
   else do;
      if _n_=1 then do;
         _x[1]=&var; _x[2]=constant('BIG');
      end;
   else do;
               _x[2]=min(_x[2], &var - _x[1]);
      _x[1]=&var;
      if eof then do;
         amount=&factor/5*abs(_x[2]);
      keep amount;
      output;
      end;
   end;
   end;
  run;

%end;
%else %if %eval(&amount=0) %then %do;
    data _duti&fid;
      set _util&fid;
   amount=&factor*z/50;
   keep amount;
   output;
 run;
%end;
%else %do;
    data _duti&fid;
      amount=&amount;
   keep amount;
   output;
 run;
%end;

proc sql noprint;
     select name into :keepvars separated by ' '
  from   sashelp.vcolumn
  where  libname='WORK'
    and  memname=%upcase("&data")
    and  memtype="DATA"
  ;
quit;
data &data;
  array _x{1} _temporary_;
     if _n_=1 then do;
     set _duti&fid;
  _x[1]=amount;
  end;
     set &data;
  &newname=&var + ranuni(0)*(2*_x[1])-_x[1];
  label &newname="jitter(&var)";
  keep &keepvars  &newname;
run;
proc datasets library=work nolist;
     delete _duti&fid _xuti&fid _util&fid;
run;quit;
%mend;


Now we can apply jitter function to the two variables studied in the book and check them out. For graphics, we use axis statement to define how we want the two axes to appear in print out, and use symbol statement to define the appearance of symbols for data. Here we ask for black circles, not connected (interpol=none).


%jitter(hours_of_sleep, xhos, data=student, factor=1, amount=);
%jitter(ToSleep, xts, data=student, factor=1, amount=);

goptions border  reset=all;
axis1  label=("jitter(ToSleep)")
       major=(height=2  number=5)   minor=none;
axis2  label=(angle=90  "jitter(Hours of Sleep")
       major=(height=2  number=5)  minor=none;
symbol1 value=circle  interpol=none  color=black;
proc gplot data=student;
      plot xhos*xts/haxis=axis1  vaxis=axis2;
run;quit;


In order to overlay a fitted regression line, we have multiple ways to do it in SAS, and the Statistical Plot procedures are particularly handy to generate this type of figures. Compare the code and corresponding figures (in the same order of LINEPRINTER, ODS GRAPHICS, Manually Drawn, SGPLOT). For manually drawn figures, since we ask for connected dots in order to obtain a line overlay on circles, we have to sort the data by X-axis variable to make the line as straight as possible. The manually drawn figure is also the one closest to the R figure in the book.



/* old school LINEPRINTER option*/
proc reg data=student  lineprinter;
      title "Line Printer Style";
      model   Hours_of_Sleep=ToSleep /noprint;
   var     xhos  xts;
   plot pred.*xts='X'  xhos*xts/overlay  symbol='o';
run;quit;
title;

/* Using ODS GRAPHICS */
ods select none; /* to suppress PROC REG output */
title "ODS Graphics";
ods graphics on;
proc reg data=student ;
      model   Hours_of_Sleep=ToSleep;
   var     xhos  xts;
   output  out=student  pred=p;
      ods select FitPlot;
run;quit;
ods graphics off;
title;
ods select all;

/* Following standard R approach, tedious in SAS */
proc sort data=student  out=studentsorted;
      by ToSleep;
run;
goptions border  reset=all;
axis1  label=("jitter(ToSleep)")      order=(-2 to 6 by 2)  major=(height=2  number=5)   minor=none;
axis2  label=(angle=90  "jitter(Hours of Sleep")    offset=(, 2 pct)  major=(height=2  number=5)  minor=none;
symbol1 value=circle  interpol=none  color=black;
symbol2 value=none  interpol=line  color=black;
proc gplot data=studentsorted;
      plot xhos*xts  p*xts/overlay  haxis=axis1  vaxis=axis2;
run;quit;

/* Using build-in REGRESSION capability of GPLOT by specifying
   INTERPOL=R<><0><> option in SYMBOL statement.
      In the first <>, you identify the type of regression:
         L=linear, Q=quadratic, C=cubic
      In the second <>, you specify if intercept is omitted;
      In the third <>, you specify type of CI:
         CLM=CI of mean predicted value;
         CLI=CI of individual points;
 */
goptions border reset=all;
axis1  label=("jitter(ToSleep)")      order=(-2 to 6 by 2)  major=(height=2  number=5)   minor=none;
axis2  label=(angle=90 "jitter(Hours of Sleep")    offset=(, 2 pct)  major=(height=2  number=5)  minor=none;
symbol1 value=circle  interpol=rlclm95  color=black  ci=blue  co=blue;
proc gplot data=student;
     plot xhos*xts/regeqn /* haxis=axis1  vaxis=axis2*/;
run;quit;

/* New SGPLOT has build in regression line capability: REG, SPLINE, LOESS */
proc sgplot data=student;
      scatter  x=xts  y=xhos;
   reg  x=ToSleep  y=Hours_of_Sleep;
run;




Now, to study the robustness of T-Statistics which relies on several assumptions, such as normality, homoskedasticity, etc. First, we need to define a "function" to calculate T-statistics like in the book.


/* section 1.3 Robustness of T-Statistics */
/* section 1.3.2 Write a function to compute T-Statistics */
%macro tstatistics(vars, dsn=last, outdsn=, class=);
%if &class='' %then %let classstmt=;
%else %let classstmt=class &class;

%let nvars=%sysfunc(count(&vars, ' '));

%let var1=%scan(&vars, 1, ' ');
%let var2=%scan(&vars, 2, ' ');
proc means data=&dsn noprint  nway;
     &classstmt;
  var &vars;
  output  out=tdata(where=(_STAT_ in ('STD', 'MEAN', 'N')));
run;
data &outdsn;
     set tdata; by &class _TYPE_;
  retain  m  n  mean1 mean2  std:;
  select(compress(_STAT_));
          when('N') do;
        m=&var1;
     n=&var2;
    end;
    when('MEAN') do;
              mean1=&var1;
     mean2=&var2;
    end;
          when('STD') do;
        std1=&var1;
     std2=&var2;
    end;
    otherwise;
  end;
     if last._TYPE_ then do;
        sp=sqrt(((m-1)*std1**2 + (n-1)*std2**2)/(m+n-2));
     t= (mean1-mean2)/(sp * sqrt(1/m + 1/n));
  keep &class _TYPE_ m  n std:  mean:  sp t;
  output;
  end;
run;
%mend;

Just like the "source(file)" command in R, in SAS, we have a counterpart called %include(or in abv. %inc). Suppose you have a SAS file called "tstatistics.sas" in some folder &folder, the following statement will read in the source code from this file. Since this is a SAS file, suffix ".sas" is not necessary.


filename BCR "&folder";
%inc BCR(tstatistics);

The following code pieces conduct the four simulate scenarios illustrated in the book and draw the last figure.

data test;
      input x y;
cards;
1  5
4  4
3  7
6  6
5  10
;
run;

%tstatistics(x y, dsn=test, outdsn=tdata2, class=);

/* section 1.3.3 Monte Carlo study on the Robustness of T-Statistics */
%let alpha=0.1;
%let m=10;
%let n=10;
%let Niter=10000;
data test;
      retain seed1 99787  seed2 76568;
   do iter=1 to &Niter;
      do j=1 to max(&n, &m);
            if j<=&m then call rannor(seed1, x); else x=.;
   if j<=&n then call rannor(seed2, y); else y=.;
   keep iter x y;
   output;
   end;
    end;
run;

%tstatistics(x y, dsn=test, outdsn=tdata2, class=iter);

data _null_;
      set tdata2  end=eof;
   retain n_reject 0;
   if abs(t)>quantile('T', 1-&alpha/2, n+m-2) then n_reject+1;
   if eof then do;
      call symput('n_reject', n_reject/_n_);
   end;
run;
%put &n_reject;


/* section 1.3.4 Study the robustness of T-Statistics */

%let alpha=0.1;
%let m=10;
%let n=10;
%let Niter=10000;
data test;
      retain seed1 987687  seed2 76568;
   array x[4];
   array y[4];
      do iter=1 to &Niter;
         do j=1 to max(&n, &m);
      do k=1 to 4;
      select (k);
         when(1) do;
                      if j<=&m then call rannor(seed1, x[k]); else x[k]=.;
                      if j<=&n then call rannor(seed2, y[k]); else y[k]=.;
      end;
      when(2) do;
                      if j<=&m then call rannor(seed1, x[k]); else x[k]=.;
                      if j<=&n then call rannor(seed2, y[k]); else y[k]=.;
                      y[k]=y[k]*10;
      end;
      when(3) do;
                      if j<=&m then x[k]=rand('T', 4); else x[k]=.;
                      if j<=&n then y[k]=rand('T', 4); else y[k]=.;
      end;
      otherwise do;
                      if j<=&m then call rannor(seed1, x[k]); else x[k]=.;
                      if j<=&n then call ranexp(seed2, y[k]); else y[k]=.;
                      x[k]=10+x[k]*2;  y[k]=y[k]/0.1;
      end;
     end;
   end;
            keep iter x1-x4 y1-y4;
            output;
         end;
      end;
run;

%tstatistics(x1 y1, dsn=test, outdsn=tdata1, class=iter);

%tstatistics(x2 y2, dsn=test, outdsn=tdata2, class=iter);

%tstatistics(x3 y3, dsn=test, outdsn=tdata3, class=iter);

%tstatistics(x4 y4, dsn=test, outdsn=tdata4, class=iter);

data _null_;
      n_reject=0;
      do until (eof1);
         set tdata1  end=eof1  nobs=n1;
         retain n_reject 0;
         if abs(t)>quantile('T', 1-&alpha/2, n+m-2) then n_reject+1;
         if eof1 then do;
             *call symput('n_reject', n_reject/_n_);
       p_reject=n_reject/n1;
       put "NOTE>> Prob(Rejection)=" p_reject  8.4;
         end;
  end;
  n_reject=0;
  do until (eof2);
         set tdata2  end=eof2  nobs=n2;
         retain n_reject 0;
         if abs(t)>quantile('T', 1-&alpha/2, n+m-2) then n_reject+1;
         if eof2 then do;
             *call symput('n_reject', n_reject/_n_);
       p_reject=n_reject/n2;
       put "NOTE>> Prob(Rejection)=" p_reject  8.4;
         end;
  end;

  do until (eof3);
         set tdata3  end=eof3 nobs=n3;
         retain n_reject 0;
         if abs(t)>quantile('T', 1-&alpha/2, n+m-2) then n_reject+1;
         if eof3 then do;
             *call symput('n_reject', n_reject/_n_);
       p_reject=n_reject/n3;
       put "NOTE>> Prob(Rejection)=" p_reject  8.4;
         end;
  end;

  do until (eof4);
         set tdata4  end=eof4  nobs=n4;
         retain n_reject 0;
         if abs(t)>quantile('T', 1-&alpha/2, n+m-2) then n_reject+1;
         if eof4 then do;
             *call symput('n_reject', n_reject/_n_);
       p_reject=n_reject/n4;
       put "NOTE>> Prob(Rejection)=" p_reject  8.4;
         end;
  end;
run;

/* draw the overlay density curves of empirical T-statistics and T-distribution */
proc sort data=tdata2;
      by t;
run;
data tdata2;
      set tdata2;
   dt=pdf('T', t, 18);
run;

ods select none;
ods output Controls=Controls;
ods output UnivariateStatistics=UniStat;
proc kde data=tdata2  ;
      univar  t /out=density  method=snr  unistats;
run;
ods select all;

data density;
      set density;
   dt=pdf('T', value, 18);
run;

data _null_;
      set UniStat;
   if Descr='Bandwidth' then call symput ('bw', compress(round(t, 0.0001)));
run;

goptions reset=all border;

title "Comparing Empirical and Theoretical Densities";
legend label=none   position=(top right inside)  mode=share;
axis1  label=("N=&Niter Bandwidth=&bw")
       order=(-4 to 8 by 2) offset=(1,1)
       major=(height=2) minor=none;
axis2  label=(angle=90  "Density")
       order=(0 to 0.4 by 0.1)  offset=(0, 0.1)
       major=(height=2)  minor=none;
symbol1  interpol=join  color=black  value=none  width=3;
symbol2  interpol=join  color=grey   value=none  width=1;
proc gplot data=density;
      plot density*value  dt*value/overlay  legend=legend
                                   haxis=axis1  vaxis=axis2  ;
      label dt='t(18)' density='Exact';
run;quit;

ods pdf close;

Key Points Summary:

0. We can use FORMCHAR option to eliminate  weird characters

1. We can use PROC IMPORT to import deliminated data and it provided flexible options to control the output;

2. We can use PROC FREQ to summarize categorical data

3. We can use PROC MEANS and PROC UNIVARIATE to generate descriptive statistics for numerical data

4. We can study the dispersion of numerical variable by categorical variable using BOXPLOT

5. We provided a JITTER function for better graphical presentation of heavily overlapped data

6. We showed that there are multiple ways to visualize scatter plots together with fitted regression lines:

  • 6.1 LINEPRINTER in PROC REG
  • 6.2 Using PROC REG to obtain regression line and overlay it on the scatter plot
  • 6.3 Using ODS Graphics in PROC REG
  • 6.4 Using INTERPOL=R<><><> option in SYMBOL statement
  • 6.5 Using PROC SGPLOT
7. We demonstrated how to conduct robust T-test in SAS following the code in the book.
Bayesian Computation with R (Use R)
 Posted by at 8:18 下午
1月 042011

The book "Bayesian Computation with R" by Jim Albert is an easy to read entry level book on applied Bayesian Statistics. While the book was written for R users, it is not difficult to translate the languages between R and SAS and I believe it is a good way to show Bayesian capability of SAS. In the next several months, I am going to translate all R code in the book into SAS. Readers are encouraged to buy this book to understand what's behind the code. The posts here will only spend minimum effects to explain the statistics underlying while most resource will still be denoted to SAS coding.

This post will cover Chapter 1.

We first follow section 1.2.2, using PROC IMPORT to read in TAB deliminated file, which corresponds to read.table(file, sep='\t', header=T)  in R. We also designated PDF as Output Destination.

/* Chapter 1 of Bayesian Computation with R */

%let folder=C:\Documents\SAS for Bayesian Compu with R;
%let datafolder=&folder\data;

libname data "&datafolder";
options missing='.' formchar = "|----|+|---+=|-/\<>*" errors=2 fullstimer;

/*@@@@@@ Section 1.2.2 @@@@@*/
/*--> Read Tab Deliminated Data into SAS */
proc import datafile="&datafolder/studentdata.txt" out=student dbms=dlm replace;
datarow=2; /* redundent with GETNAMES= statement */
guessingrows=2; /* Only use first 2 rows of data to guess the type of data */
delimiter='09'x; /* this is redudent if we specify DBMS=TAB in PROC IMPORT option */
getnames=YES; /* This is the same as 'header=True' in R's table.read function */
run;

ods pdf file="&folder/Chapter1.pdf";
/*--> To see Variable Names and print first row of this data
Use SPLIT="*" to specify the split character being "*", which controls
line breaks in column headings
*/
proc print data=student(obs=1) split="*"; run;

SAS output looks like:
Section 1.2.3, summarize frequency tables and use Barplot to visualize the counts.

PROC FREQ directly corresponds to table() function in R, but provides much richer functionality. PROC GBARLINE is used to answer what barplot() does in R. The LABEL= statement in SAS is a very handy tool for annotation purpose for PRINT or GRAPH.

PROC MEANS somehow corresponds to summary() function to obtain summary statistics for quantitative variables. You can sepecify MAXDEC= to keep desired number of decimals in print out.
Histogram can be obtained in SAS via either PROC UNIVARIATE or newly introduced PROC SGPLOT. PROC UNIVARIATE provides more control though. As shown below, you can specify desired mid-points while you can't do so in SGPLOT. On the other hand, SGPLOT is very convenient if you want to overlay density curve, either a normal fit or kernel one.


/*@@@@ section 1.2.3 @@@*/
/*--> To summarize and graph a single Batch */
proc freq data=student;
table Drink;
run;

/*--> Barplot on single variable */
title "Original idea, summarize and plot";
proc freq data=student noprint;
table Drink /out=t;
run;
goptions reset=all noborder;
proc gbarline data=t;
bar Drink /discrete space=4 sumvar=count;
run;quit;
title;
/*--> Actually, in SAS, it is better to directly use
PROC GBARLINE */
goptions reset=all noborder;
title "In SAS, PROC GBARLINE directly summarize";
proc gbarline data=student;
bar Drink /discrete space=3 ;
run;quit;
title;

data student;
set student;
hours_of_sleep=WakeUp-ToSleep;
/* Label can be useful for annotation purpose */
label hours_of_sleep="Hours Of Sleep";
run;

proc means data=student
/* Request same statistics as in the book */
min q1 median q3 max nmiss
/* MAXDEC= specifies keeping 2 decimals */
maxdec=2;
var hours_of_sleep;
run;

/*--> Histogram using PROC UNIVARIATE */
proc univariate data=student noprint;
var hours_of_sleep;
histogram /midpoints=2.5 to 12.5 by 1;
run;

/* new SGPLOT is a handy way to draw histogram and density */
proc sgplot data=student;
histogram hours_of_sleep/scale=count;
density hours_of_sleep/scale=count type=normal;
run;

Compare SAS outputs:





Boxplot to visualize distribution of  quantitative variables by some classification variable. Here, formula such as var1*var2 style corresponds to var1~var2 style in R.


/*@@@ section 1.2.4 @@@@*/
/*---> Compare Batches using Boxplot */
proc sort data=student out=studentsorted; by Gender; run;
proc boxplot data=studentsorted;
plot hours_of_sleep*Gender;
run;

proc means data=student
min q1 median q3 max nmiss
nway maxdec=2;
class Gender;
var Haircut;
run;

SAS output looks like:




R has built-in jitter function, however, we have to make our own in SAS. This verision doesn't apply Fuzzy yet, only for demo purpose.


%macro jitter(var, newname, data=last, factor=1, amount=);
/* follow the JITTER function in R, no fuzzy applied yet .
if amount is given, then use this value for disturbance
else if amount is 0, then use the range of &var for disturbance
else if amount is NULL, then use the smallest difference among
distinct values of &var for disturbance. if all values are
the same, then use the value obtained from range

if range of &var is 0, then use the lower range for disturbance
otherwise
*/
%let blank=%str( );
%if &data=' ' %then %let data=last;
%local fid;

data _null_;
fid=round(ranuni(0)*10000, 1);
call symput('fid', compress(fid));
run;
proc means data=&data noprint;
var &var;
output out=_util&fid
range(&var)=range
min(&var)=min
max(&var)=max;
run;
data _util&fid;
set _util&fid;
if range^=0 then z=range; else z=min;
if z=0 then z=1;
run;

%if %eval(&amount=&blank) %then %do;
proc sort data=&data.(keep=&var where=(&var^=.))
out=_xuti&fid nodupkey;
by &var;
run;
data _duti&fid;
set _xuti&fid nobs=ntotal end=eof;
array _x{2} _temporary_;
if ntotal=1 then do;
amount=&factor/50*abs(&var);
keep amount;
output;
stop;
end;
else do;
if _n_=1 then do;
_x[1]=&var; _x[2]=constant('BIG');
end;
else do;
_x[2]=min(_x[2], &var - _x[1]);
_x[1]=&var;
if eof then do;
amount=&factor/5*abs(_x[2]);
keep amount;
output;
end;
end;
end;
run;

%end;
%else %if %eval(&amount=0) %then %do;
data _duti&fid;
set _util&fid;
amount=&factor*z/50;
keep amount;
output;
run;
%end;
%else %do;
data _duti&fid;
amount=&amount;
keep amount;
output;
run;
%end;

proc sql noprint;
select name into :keepvars separated by ' '
from sashelp.vcolumn
where libname='WORK'
and memname=%upcase("&data")
and memtype="DATA"
;
quit;
data &data;
array _x{1} _temporary_;
if _n_=1 then do;
set _duti&fid;
_x[1]=amount;
end;
set &data;
&newname=&var + ranuni(0)*(2*_x[1])-_x[1];
label &newname="jitter(&var)";
keep &keepvars &newname;
run;
proc datasets library=work nolist;
delete _duti&fid _xuti&fid _util&fid;
run;quit;
%mend;


Now we can apply jitter function to the two variables studied in the book and check them out. For graphics, we use axis statement to define how we want the two axes to appear in print out, and use symbol statement to define the appearance of symbols for data. Here we ask for black circles, not connected (interpol=none).


%jitter(hours_of_sleep, xhos, data=student, factor=1, amount=);
%jitter(ToSleep, xts, data=student, factor=1, amount=);

goptions border reset=all;
axis1 label=("jitter(ToSleep)")
major=(height=2 number=5) minor=none;
axis2 label=(angle=90 "jitter(Hours of Sleep")
major=(height=2 number=5) minor=none;
symbol1 value=circle interpol=none color=black;
proc gplot data=student;
plot xhos*xts/haxis=axis1 vaxis=axis2;
run;quit;


In order to overlay a fitted regression line, we have multiple ways to do it in SAS, and the Statistical Plot procedures are particularly handy to generate this type of figures. Compare the code and corresponding figures (in the same order of LINEPRINTER, ODS GRAPHICS, Manually Drawn, SGPLOT). For manually drawn figures, since we ask for connected dots in order to obtain a line overlay on circles, we have to sort the data by X-axis variable to make the line as straight as possible. The manually drawn figure is also the one closest to the R figure in the book.



/* old school LINEPRINTER option*/
proc reg data=student lineprinter;
title "Line Printer Style";
model Hours_of_Sleep=ToSleep /noprint;
var xhos xts;
plot pred.*xts='X' xhos*xts/overlay symbol='o';
run;quit;
title;

/* Using ODS GRAPHICS */
ods select none; /* to suppress PROC REG output */
title "ODS Graphics";
ods graphics on;
proc reg data=student ;
model Hours_of_Sleep=ToSleep;
var xhos xts;
output out=student pred=p;
ods select FitPlot;
run;quit;
ods graphics off;
title;
ods select all;

/* Following standard R approach, tedious in SAS */
proc sort data=student out=studentsorted;
by ToSleep;
run;
goptions border reset=all;
axis1 label=("jitter(ToSleep)") order=(-2 to 6 by 2) major=(height=2 number=5) minor=none;
axis2 label=(angle=90 "jitter(Hours of Sleep") offset=(, 2 pct) major=(height=2 number=5) minor=none;
symbol1 value=circle interpol=none color=black;
symbol2 value=none interpol=line color=black;
proc gplot data=studentsorted;
plot xhos*xts p*xts/overlay haxis=axis1 vaxis=axis2;
run;quit;

/* Using build-in REGRESSION capability of GPLOT by specifying
INTERPOL=R<><0><> option in SYMBOL statement.
In the first <>, you identify the type of regression:
L=linear, Q=quadratic, C=cubic
In the second <>, you specify if intercept is omitted;
In the third <>, you specify type of CI:
CLM=CI of mean predicted value;
CLI=CI of individual points;
*/
goptions border reset=all;
axis1 label=("jitter(ToSleep)") order=(-2 to 6 by 2) major=(height=2 number=5) minor=none;
axis2 label=(angle=90 "jitter(Hours of Sleep") offset=(, 2 pct) major=(height=2 number=5) minor=none;
symbol1 value=circle interpol=rlclm95 color=black ci=blue co=blue;
proc gplot data=student;
plot xhos*xts/regeqn /* haxis=axis1 vaxis=axis2*/;
run;quit;

/* New SGPLOT has build in regression line capability: REG, SPLINE, LOESS */
proc sgplot data=student;
scatter x=xts y=xhos;
reg x=ToSleep y=Hours_of_Sleep;
run;




Now, to study the robustness of T-Statistics which relies on several assumptions, such as normality, homoskedasticity, etc. First, we need to define a "function" to calculate T-statistics like in the book.


/* section 1.3 Robustness of T-Statistics */
/* section 1.3.2 Write a function to compute T-Statistics */
%macro tstatistics(vars, dsn=last, outdsn=, class=);
%if &class='' %then %let classstmt=;
%else %let classstmt=class &class;

%let nvars=%sysfunc(count(&vars, ' '));

%let var1=%scan(&vars, 1, ' ');
%let var2=%scan(&vars, 2, ' ');
proc means data=&dsn noprint nway;
&classstmt;
var &vars;
output out=tdata(where=(_STAT_ in ('STD', 'MEAN', 'N')));
run;
data &outdsn;
set tdata; by &class _TYPE_;
retain m n mean1 mean2 std:;
select(compress(_STAT_));
when('N') do;
m=&var1;
n=&var2;
end;
when('MEAN') do;
mean1=&var1;
mean2=&var2;
end;
when('STD') do;
std1=&var1;
std2=&var2;
end;
otherwise;
end;
if last._TYPE_ then do;
sp=sqrt(((m-1)*std1**2 + (n-1)*std2**2)/(m+n-2));
t= (mean1-mean2)/(sp * sqrt(1/m + 1/n));
keep &class _TYPE_ m n std: mean: sp t;
output;
end;
run;
%mend;

Just like the "source(file)" command in R, in SAS, we have a counterpart called %include(or in abv. %inc). Suppose you have a SAS file called "tstatistics.sas" in some folder &folder, the following statement will read in the source code from this file. Since this is a SAS file, suffix ".sas" is not necessary.


filename BCR "&folder";
%inc BCR(tstatistics);

The following code pieces conduct the four simulate scenarios illustrated in the book and draw the last figure.

data test;
input x y;
cards;
1 5
4 4
3 7
6 6
5 10
;
run;

%tstatistics(x y, dsn=test, outdsn=tdata2, class=);

/* section 1.3.3 Monte Carlo study on the Robustness of T-Statistics */
%let alpha=0.1;
%let m=10;
%let n=10;
%let Niter=10000;
data test;
retain seed1 99787 seed2 76568;
do iter=1 to &Niter;
do j=1 to max(&n, &m);
if j<=&m then call rannor(seed1, x); else x=.;
if j<=&n then call rannor(seed2, y); else y=.;
keep iter x y;
output;
end;
end;
run;

%tstatistics(x y, dsn=test, outdsn=tdata2, class=iter);

data _null_;
set tdata2 end=eof;
retain n_reject 0;
if abs(t)>quantile('T', 1-&alpha/2, n+m-2) then n_reject+1;
if eof then do;
call symput('n_reject', n_reject/_n_);
end;
run;
%put &n_reject;


/* section 1.3.4 Study the robustness of T-Statistics */

%let alpha=0.1;
%let m=10;
%let n=10;
%let Niter=10000;
data test;
retain seed1 987687 seed2 76568;
array x[4];
array y[4];
do iter=1 to &Niter;
do j=1 to max(&n, &m);
do k=1 to 4;
select (k);
when(1) do;
if j<=&m then call rannor(seed1, x[k]); else x[k]=.;
if j<=&n then call rannor(seed2, y[k]); else y[k]=.;
end;
when(2) do;
if j<=&m then call rannor(seed1, x[k]); else x[k]=.;
if j<=&n then call rannor(seed2, y[k]); else y[k]=.;
y[k]=y[k]*10;
end;
when(3) do;
if j<=&m then x[k]=rand('T', 4); else x[k]=.;
if j<=&n then y[k]=rand('T', 4); else y[k]=.;
end;
otherwise do;
if j<=&m then call rannor(seed1, x[k]); else x[k]=.;
if j<=&n then call ranexp(seed2, y[k]); else y[k]=.;
x[k]=10+x[k]*2; y[k]=y[k]/0.1;
end;
end;
end;
keep iter x1-x4 y1-y4;
output;
end;
end;
run;

%tstatistics(x1 y1, dsn=test, outdsn=tdata1, class=iter);

%tstatistics(x2 y2, dsn=test, outdsn=tdata2, class=iter);

%tstatistics(x3 y3, dsn=test, outdsn=tdata3, class=iter);

%tstatistics(x4 y4, dsn=test, outdsn=tdata4, class=iter);

data _null_;
n_reject=0;
do until (eof1);
set tdata1 end=eof1 nobs=n1;
retain n_reject 0;
if abs(t)>quantile('T', 1-&alpha/2, n+m-2) then n_reject+1;
if eof1 then do;
*call symput('n_reject', n_reject/_n_);
p_reject=n_reject/n1;
put "NOTE>> Prob(Rejection)=" p_reject 8.4;
end;
end;
n_reject=0;
do until (eof2);
set tdata2 end=eof2 nobs=n2;
retain n_reject 0;
if abs(t)>quantile('T', 1-&alpha/2, n+m-2) then n_reject+1;
if eof2 then do;
*call symput('n_reject', n_reject/_n_);
p_reject=n_reject/n2;
put "NOTE>> Prob(Rejection)=" p_reject 8.4;
end;
end;

do until (eof3);
set tdata3 end=eof3 nobs=n3;
retain n_reject 0;
if abs(t)>quantile('T', 1-&alpha/2, n+m-2) then n_reject+1;
if eof3 then do;
*call symput('n_reject', n_reject/_n_);
p_reject=n_reject/n3;
put "NOTE>> Prob(Rejection)=" p_reject 8.4;
end;
end;

do until (eof4);
set tdata4 end=eof4 nobs=n4;
retain n_reject 0;
if abs(t)>quantile('T', 1-&alpha/2, n+m-2) then n_reject+1;
if eof4 then do;
*call symput('n_reject', n_reject/_n_);
p_reject=n_reject/n4;
put "NOTE>> Prob(Rejection)=" p_reject 8.4;
end;
end;
run;

/* draw the overlay density curves of empirical T-statistics and T-distribution */
proc sort data=tdata2;
by t;
run;
data tdata2;
set tdata2;
dt=pdf('T', t, 18);
run;

ods select none;
ods output Controls=Controls;
ods output UnivariateStatistics=UniStat;
proc kde data=tdata2 ;
univar t /out=density method=snr unistats;
run;
ods select all;

data density;
set density;
dt=pdf('T', value, 18);
run;

data _null_;
set UniStat;
if Descr='Bandwidth' then call symput ('bw', compress(round(t, 0.0001)));
run;

goptions reset=all border;

title "Comparing Empirical and Theoretical Densities";
legend label=none position=(top right inside) mode=share;
axis1 label=("N=&Niter Bandwidth=&bw")
order=(-4 to 8 by 2) offset=(1,1)
major=(height=2) minor=none;
axis2 label=(angle=90 "Density")
order=(0 to 0.4 by 0.1) offset=(0, 0.1)
major=(height=2) minor=none;
symbol1 interpol=join color=black value=none width=3;
symbol2 interpol=join color=grey value=none width=1;
proc gplot data=density;
plot density*value dt*value/overlay legend=legend
haxis=axis1 vaxis=axis2 ;
label dt='t(18)' density='Exact';
run;quit;

ods pdf close;

Key Points Summary:

0. We can use FORMCHAR option to eliminate  weird characters

1. We can use PROC IMPORT to import deliminated data and it provided flexible options to control the output;

2. We can use PROC FREQ to summarize categorical data

3. We can use PROC MEANS and PROC UNIVARIATE to generate descriptive statistics for numerical data

4. We can study the dispersion of numerical variable by categorical variable using BOXPLOT

5. We provided a JITTER function for better graphical presentation of heavily overlapped data

6. We showed that there are multiple ways to visualize scatter plots together with fitted regression lines:

  • 6.1 LINEPRINTER in PROC REG
  • 6.2 Using PROC REG to obtain regression line and overlay it on the scatter plot
  • 6.3 Using ODS Graphics in PROC REG
  • 6.4 Using INTERPOL=R<><><> option in SYMBOL statement
  • 6.5 Using PROC SGPLOT
7. We demonstrated how to conduct robust T-test in SAS following the code in the book.
Bayesian Computation with R (Use R)
 Posted by at 8:18 下午
